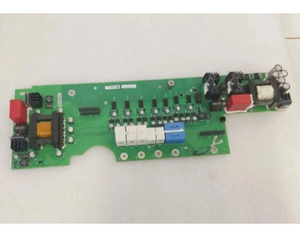

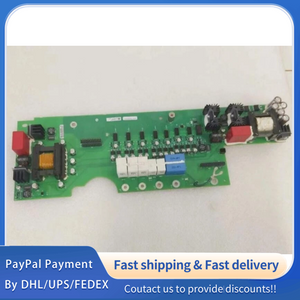

1PC used 100% tested PN-616955 a Standard Control Interface Board by Allen‑Bradley, designed as the main logic and communication board for PowerFlex 753/755 AC Drives (20–50 kW, 400–480 VAC) #QYM001 J1688
1PC used 100% tested PN-616955 a Standard Control Interface Board by Allen‑Bradley, designed as the main logic and communication board for PowerFlex 753/755 AC Drives (20–50 kW, 400–480 VAC) #QYM001 J1688
| Parameter | Technical Value |
|---|---|

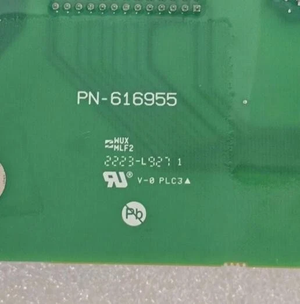

| Part Number | PN‑616955 AB |
| Product Type | Standard Control Interface Board (Main Logic Board) |
| Primary Compatibility | Allen‑Bradley PowerFlex 753/755 Drives (20–50 kW, 400–480 VAC, 50/60 Hz) |
| Input Power | 24 VDC (logic power, 1.2 A max); powered by drive internal power supply |
| Core Processor | 32‑bit ARM Cortex‑M4 (120 MHz, floating‑point unit) |
| Memory | 512 KB Flash (firmware); 128 KB SRAM (runtime data) |
| Digital I/O | 8 isolated inputs (24 VDC, sinking/sourcing); 6 isolated outputs (24 VDC, 2 A max per channel) |
| Analog I/O | 2 differential analog inputs (0–10 VDC / 4–20 mA); 1 analog output (0–10 VDC / 4–20 mA) |
| Communication Interfaces | Modbus TCP/IP (Ethernet); RS‑485 (Modbus RTU); SPI (local drive bus); USB (service port) |
| Signal Isolation | 2500 VAC (I/O to logic); 3000 VAC (power bus to control circuit) |
| Protection Features | Overvoltage, overcurrent, short‑circuit, overtemperature, under‑voltage lockout (UVLO); ESD protection (±8 kV contact, ±15 kV air) |
| Operating Temperature | 0–55°C (32–131°F); Storage: ‑40–85°C (‑40–185°F) |
| Humidity | 5%–95% RH (non‑condensing) |
| Form Factor | DIN‑rail compatible (drive‑mounted, 180 × 120 × 45 mm); same physical size as PN‑616956 |
| Certifications | CE, UL, cUL, RoHS |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
