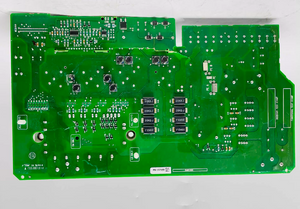

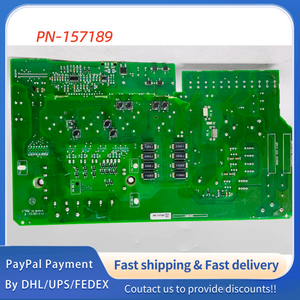

1PC used 100% tested PN-157189 an Allen-Bradley Main Control Board (MCB), specifically engineered as the core logic and control module for PowerFlex 750-series AC drives#QYM001 J1688
1PC used 100% tested PN-157189 an Allen-Bradley Main Control Board (MCB), specifically engineered as the core logic and control module for PowerFlex 750-series AC drives#QYM001 J1688
| Parameter | Technical Value |
|---|---|
| Part Number | PN-157189 AB |
| Product Type | Main Control Board (MCB) for PowerFlex 750 Drives |
| Primary Compatibility | PowerFlex 753/755/755T AC Drives (20–110 kW, 400–480 VAC, 50/60 Hz) |
| Logic Power Supply | 24 VDC (±10% tolerance), 1.5 A max current draw |
| Core Processor | 32-bit ARM Cortex-M7 (168 MHz, floating-point unit) |
| Memory | 1 MB Flash (firmware storage); 256 KB SRAM (runtime data processing) |
| Digital I/O | 10 isolated inputs (24 VDC, sinking/sourcing configurable); 6 isolated outputs (24 VDC, 2 A max per channel) |
| Analog I/O | 3 differential analog inputs (4–20 mA / 0–10 VDC, 12-bit resolution); 2 analog outputs (4–20 mA, 12-bit resolution) |
| Communication Interfaces | Ethernet/IP, Modbus TCP/IP, Modbus RTU (RS-485), Drive Local Bus (DLB) |
| Signal Isolation | 2500 VAC (I/O to logic circuit); 3000 VAC (power bus to control circuit) |
| Protection Features | Overvoltage, overcurrent, short-circuit, overtemperature, phase loss, ground fault protection; ESD protection (±15 kV air, ±8 kV contact) |
| Operating Temperature | 0–55°C (32–131°F); Storage Temperature: -40–85°C (-40–185°F) |
| Humidity Tolerance | 5%–95% RH, non-condensing |
| Mounting Type | Drive-chassis integrated mount (not standalone DIN-rail compatible) |
| Certifications | CE, UL Listed, cUL Certified, RoHS 2 Compliant |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
