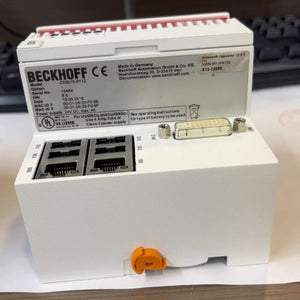

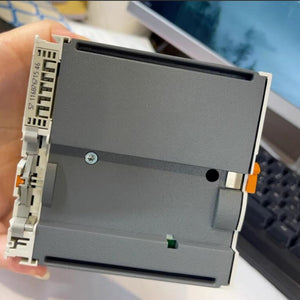

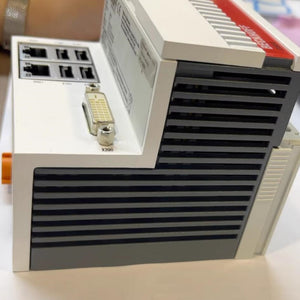

1pc for USED BECKHOFF CX5010-0112 Embedded PC#LYQ007
1pc for USED BECKHOFF CX5010-0112 Embedded PC#LYQ007
| Parameter | Specification |
|---|---|
| Model | CX5010-0112 |
| Alternative Part No. | CX50100112, 068626 |
| Processor | Intel® Atom™ Z510, 1.1 GHz |
| Cores | 1 |
| Internal RAM | 512 MB (non-expandable) |
| Flash Memory | 128 MB CompactFlash (expandable) |
| Persistent Memory | Integrated 1‑second UPS (1 MB on CF) |
| Operating System | Microsoft Windows Embedded CE 6.0 |
| Control Software | TwinCAT 2 NC PTP Runtime |
| I/O Bus | E‑Bus / K‑Bus (auto‑detect) |
| Interfaces | 2× Gigabit Ethernet (RJ45), DVI‑D, 4× USB 2.0, 1× optional |
| Diagnostics LEDs | Power, TwinCAT status, Flash access, 2× Bus status |
| Clock | Battery‑backed real‑time clock (replaceable battery) |
| Power Supply | 24 V DC (-15% / +20%) |
| Bus Current | 2 A (5 V) |
| Max. Power Consumption | 12 W (total) |
| Max. Bus Power | 10 W (5 V / 2 A)Beckhoff |
| Dielectric Strength | 500 Veff (supply / internal) |
| Dimensions (W×H×D) | 106 mm × 100 mm × 92 mmBeckhoff |
| Weight | approx. 575 gBeckhoff |
| Operating Temp. | -25 °C … +60 °C |
| Storage Temp. | -40 °C … +85 °C |
| Humidity | 95% RH, non‑condensing |
| Vibration/Shock | EN 60068‑2‑6 / EN 60068‑2‑27 / 29 |
| EMC | EN 61000‑6‑2 / EN 61000‑6‑4 |
| Protection Class | IP20 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
