Parameter    Details

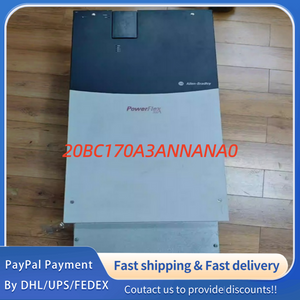

Product Model    20BC170A3ANNANA0 (Allen‑Bradley PowerFlex 700 AC Drive)
Input Voltage    3‑phase, 480V AC, 50/60Hz (±10% tolerance)
Output Current    170A (Normal Duty, ND); Heavy Duty (HD) derated to 82kW
Output Power    100kW (ND), 82kW (HD)
Output Voltage    0‑480V AC (variable, matches input voltage range)
Max. Output Frequency    Up to 420Hz
Control Mode    100V AC I/O V/Hz Control (variant A)
Frame Size    Frame 6
Mechanical & Environmental Specifications
Parameter    Details
Enclosure    IP20, NEMA/UL Type 1, with Conformal Coating
Operator Interface    No HIM (Blank Plate)
Brake Configuration    No Brake IGBT (A), No internal braking resistor (N)
EMC Filter    No EMC Filter (A)
Communication    No Communication Module (A)
Operating Temperature    0‑40°C (ambient, derate above 40°C)
Storage Temperature    ‑25‑70°C
Relative Humidity    5‑95% (non‑condensing)
Performance & Protection
Feature    Specifications
Torque Regulation    V/Hz Control, suitable for general‑purpose applications
Current Limit    Proactive current limit programmable from 20‑160% of rated output current; Instantaneous current limit: 220‑300% of rated current
Efficiency    97.5% at rated current and nominal line voltage
Overcurrent Protection    Instantaneous overcurrent trip to prevent drive damage
