Parameter    Details

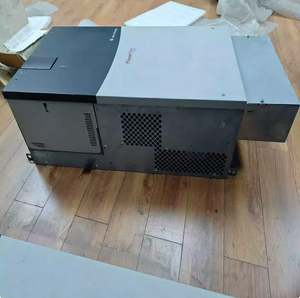

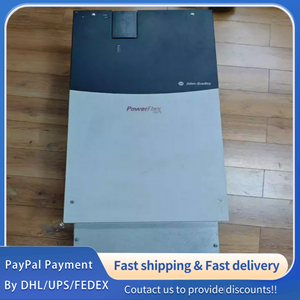

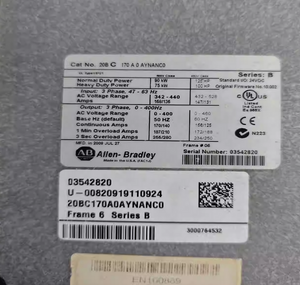

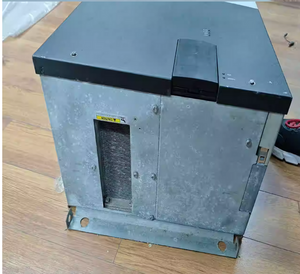

Product Model    20BC170A0ANNANC0 (Allen‑Bradley PowerFlex 700 AC Drive)
Input Voltage    3‑phase, 400V AC, 50/60Hz (±10% tolerance)
Output Current    170A (Normal Duty, ND); Heavy Duty (HD) derated to 75kW
Output Power    90kW (ND), 75kW (HD)
Output Voltage    0‑400V AC (variable, matches input voltage range)
Max. Output Frequency    Up to 420Hz
Control Mode    Vector control with 24V DC I/O
Frame Size    Frame 6
Mechanical & Environmental Specifications
Parameter    Details
Enclosure    IP20, NEMA/UL Type 1, with Conformal Coating
Operator Interface    No HIM (Blank Plate)
Brake Configuration    No Brake IGBT (A), No internal braking resistor (N)
EMC Filter    No EMC Filter (N)
Communication    No communication module (N)
Operating Temperature    0‑40°C (ambient, derate above 40°C)
Storage Temperature    ‑25‑70°C
Relative Humidity    5‑95% (non‑condensing)
Performance & Protection
Feature    Specifications
Torque Regulation    ±5% (without feedback), 600 rad/sec bandwidth
Current Limit    Proactive current limit programmable from 20‑160% of rated output current; Instantaneous current limit: 220‑300% of rated current
Efficiency    97.5% at rated current and nominal line voltage
Overcurrent Protection    Instantaneous overcurrent trip to prevent drive damage

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
