Parameter    Details

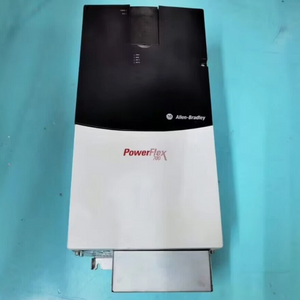

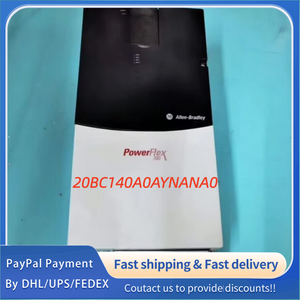

Model    20BC140A0AYNANA0
Manufacturer    Allen‑Bradley (Rockwell Automation)Rockwell Automation
Input Voltage    3‑phase 400 VAC (380–480 VAC nominal)
Output Current    140 A (continuous)
HP / kW Rating    75 HP (Normal Duty); 55 HP (Heavy Duty) / 75 kW / 55 kW
Max Output Frequency    420 Hz
Control Modes    V/Hz, Sensorless Vector, Vector with FORCE™ TechnologyRockwell Automation
Enclosure    IP20 / NEMA Type 1 (open chassis, cabinet‑mount)
Conformal Coating    Yes (standard for this model)
Brake    Brake IGBT installed; no internal brake resistor
I/O & Communications
Digital Inputs: 6 opto‑isolated inputs
Analog Inputs: 2 (0–10 V, 4–20 mA)
Digital Outputs: 3 relays
Analog Outputs: 2 (0–10 V, 4–20 mA)
Encoder Interface: 12V @ 250mA, line‑driver encoder support
Communications: Embedded CIP (EtherNet/IP, DeviceNet), Modbus RTU, RS‑485
HIM: Full numeric LCD HIM (Human Interface Module)
Environmental & Physical
Operating Temp: 0 °C to 40 °C (400V AC)
Storage Temp: −40 °C to 70 °C
Humidity: 5–95% RH (non‑condensing)
Altitude: Up to 1000 m (3300 ft) without derating
Efficiency: 97.5% at rated current & nominal voltage
Key Features
Patented FORCE™ vector control for high torque & tight speed regulationRockwell Automation
Built‑in EMC filtering & DC bus choke
16‑step position indexer / speed profiler
Overload protection: 110% continuous, 150% for 60sRockwell Automation
Power ride‑thru: 15 ms at full load; logic ride‑thru: 0.25–2 sRockwell Automation
Flying start, integral PI control, inertia ride‑through

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
