Basic Information

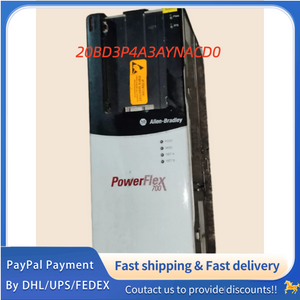

Catalog Number: 20BD3P4A3AYNACD0
Product Line: PowerFlex 700 AC Drive
Drive Type: AC Variable Frequency Drive
Frame Size: 0
Electrical Data
Input Voltage: 3‑phase 480 VAC (342–528 VAC)
Input Frequency: 47–63 Hz
Output Current: 3.4 A continuous; 4.5 A for 1 min; 6 A for 3 sec
Power Rating:
Normal Duty: 2 HP / 1.5 kW
Heavy Duty: 1.5 HP / 1.1 kW
Control Mode: Sensorless Vector, V/Hz, Vector Control
Switching Frequency: Programmable up to 16 kHz
Output Frequency: 0–400 Hz
Mechanical & Environmental
Enclosure: IP20 / NEMA Type 1
Dimensions (W×H×D): 110 mm × 336 mm × 200 mm
Weight: Approx. 6.3 kg (13.9 lb)
Operating Temperature: 0–40 °C
Storage Temperature: -40 °C to +60 °C
Humidity: 5–95% non‑condensing
Cooling: Forced‑air cooling
I/O & Communication
I/O: Enhanced 24 V DC I/O
Onboard Communication: None (empty comm slot)
Features
HIM: Numeric Keypad - LCD Display
Built‑in EMC filter (CE compliant)
Internal common‑mode reactor
Internal brake IGBT / dynamic brake chopper installed (no internal resistor)
Protections: Overcurrent, Overvoltage, Undervoltage, Overtemperature, Motor overload
Certifications
UL, cUL, CE, C‑Tick, KC, GOST, RoHS compliant
