Basic Identification

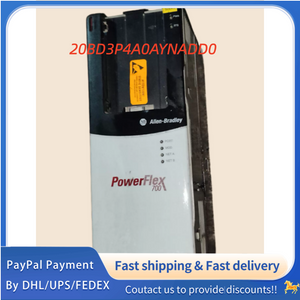

Catalog Number: 20BD3P4A0AYNADD0
Product Line: Allen‑Bradley PowerFlex® 700 AC Drive
Drive Type: AC Variable Frequency Drive (VFD)
Frame Size: Frame 0
Lifecycle Status: Discontinued (Nov 30, 2023)
Electrical Specifications
Input Voltage: 3‑phase 480 VAC (Operating Range: 342–528 VAC)
Input Frequency: 50/60 Hz
Output Current: 3.4 A continuous; 4.5 A for 1 min; 6 A for 3 sec
Power Ratings:
Normal Duty: 2 HP / 1.5 kW
Heavy Duty: 1.5 HP / 1.1 kW
Control Mode: Vector Control with 115V AC I/O (supports V/Hz control)Rockwell Automation
Switching Frequency: Programmable up to 16 kHz
Efficiency: Up to 97.5% at rated load
Power Loss: 31 W (light load @ 480V, 2 HP); 76 W (rated load @ 480V, 2 HP)Rockwell Automation
Power Factor: 0.98 across speed range
Short‑circuit Rating: 200,000 A symmetrical
Mechanical & Environmental
Enclosure: IP20 / NEMA/UL Type 1
Dimensions (W×H×D): 110 mm × 336 mm × 200 mm
Operating Temperature: 0–40 °C (ambient)
Storage Temperature: -40 °C to +60 °C
Relative Humidity: 5–95% non‑condensing
Altitude: Up to 1000 m (3300 ft) without derating
Cooling: Forced‑air cooling
Vibration/Shock: 1 G peak vibration; 15 G peak shock (11 ms)
Pollution Degree: 1 (EN 61800‑5‑1)
I/O & Communications
I/O Voltage: 115V AC (120V AC compatible)Rockwell Automation
Digital Inputs: 6 discrete inputs (115V AC, 5 mA each)
Digital Outputs: 3 relay outputs (Form A/B/C)
Analog Inputs: 2 (0–10 V / 4–20 mA)
Onboard Communication: Factory‑installed DeviceNet™ (DPI) module
Optional Adapters: EtherNet/IP™, ControlNet™, PROFIBUS
Torque Regulation: Without feedback: ±5%, 600 rad/sec bandwidthRockwell Automation
Features & Protection
HIM: Blank plate (no Human Interface Module included)
EMC Filter: Built‑in CE‑compliant EMC filter
Reactor: Internal common‑mode reactor
Braking: Internal brake IGBT (dynamic brake chopper; no external resistor included)
Protections: Overcurrent, overvoltage, undervoltage, overtemperature, motor overload, short‑circuit
Key Features: Fast current limit, bus voltage regulation, flying start, parameter linking
Certifications
UL, cUL, CE, C‑Tick, KC, GOST, RoHS compliant
