Parameter    Value    Unit

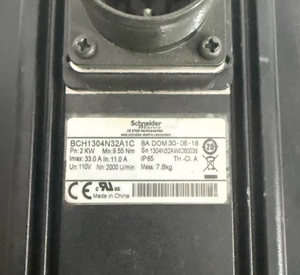

Model No.    BCH1304N32A1C    -
Product Series    Lexium 23 Plus    -
Type    AC Servo Motor    -
Rated Power    2.0    kW
Nominal Speed    3000    rpm
Frame Size    130 × 130    mm

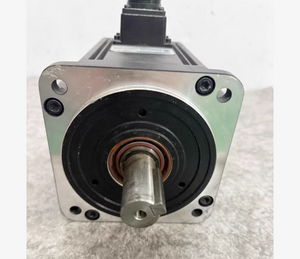

Shaft Diameter    22    mm
Shaft Length    47    mm
Key Width    8    mm
Encoder Type    20-bit Incremental    -
Brake    Without Holding Brake    -
Oil Seal    With Oil Seal    -
Shaft Key    With Key    -
Net Weight    7.8    kg
Total Length    187.5    mm
Degree of Protection    IP65    -
Rated Torque Constant    0.87    N·m/A
Back EMF Constant    31.8    V/krpm (20 °C)
Rotor Inertia    14.59    kg·cm²
Stator Resistance    0.348    Ω (20 °C)
Stator Inductance    5.52    mH (20 °C)
Electrical Time Constant    15.86    ms (20 °C)
Max. Radial Force    490    N
Max. Axial Force    98    N
Rated Supply Voltage    220    V
Number of Phases    3    -
Continuous Stall Current    11.01    A
Ambient Temp (Operating)    0–40    °C
Ambient Temp (Storage)    -10–80    °C
Certifications    CE, cURus    -
