Parameter    Specification
Product Type    Adjustable‑frequency AC Drive

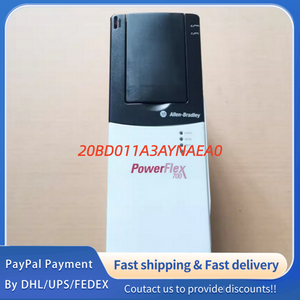

Product Line    PowerFlex 700
Part Number    20BD011A3AYNAEA0
Input Voltage    480 V AC, 3‑Phase
Input Frequency    47–63 Hz (Nominal 60 Hz)
Input Current    9.5 A
Input Power    7.9 kVA
Rated Output Current    11.0 A (Continuous)
Rated Power    7.5 HP (≈5.5 kW) Normal Duty; 5 HP (≈3.7 kW) Heavy Duty
Output Voltage    0–460 V AC, 3‑Phase
Output Frequency    0–420 Hz
Control Type    V/Hz & Sensorless Vector Control
Brake IGBT    Installed
Internal Brake Resistor    Not Included
EMC Filter / Common Mode Choke    Included
DC Bus Voltage    648 V DC (Nominal)
DC Bus Trip    UV: 305 V, OV: 810 V
AC Line Trip    UV: 280 V, OV: 570 V
PWM Carrier Frequency    2–10 kHz (Adjustable)
Overload Ratings    12.1 A (1 min), 16.5 A (3 s)
Enclosure    IP20 / NEMA 1 (Open Type)
Frame Size    Frame 0
Weight    11.31 lbs (5.13 kg)
Operating Temp    0°C to 40°C
Humidity    5–95% RH (Non‑condensing)
Max Altitude    1000 m Above Sea Level
Efficiency    97.5% at Rated Current
Power Factor    0.98
I/O Configuration    6 Digital Inputs, 3 Digital Outputs, 2 Analog Inputs, 2 Analog Outputs
Encoder Input    Not Supported
Communication    Embedded EtherNet/IP, RS‑485, Modbus RTU, DSI Port
HIM    LCD Display + Full Numeric Keypad
Certifications    CE, UL, CUL, C‑Tick
