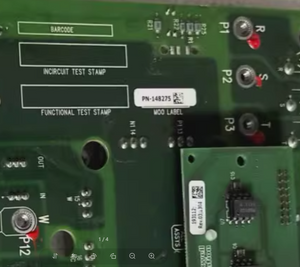

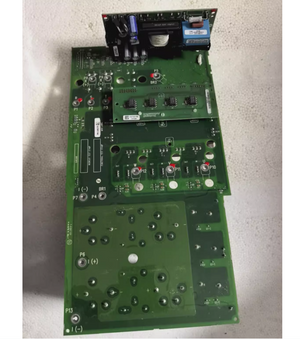

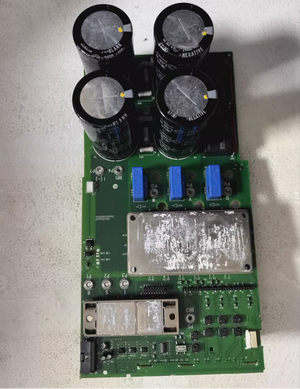

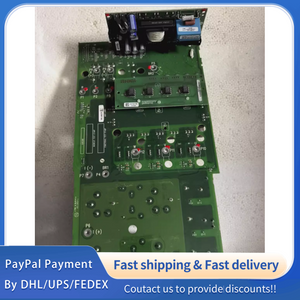

1PC used 100% tested PN-148275 Allen‑Bradley Digital I/O & Communication Interface Board (legacy model) designed for PowerFlex 700/700S/700HF AC drives (15–110 kW, 200–480 VAC #QYM001 J1688
1PC used 100% tested PN-148275 Allen‑Bradley Digital I/O & Communication Interface Board (legacy model) designed for PowerFlex 700/700S/700HF AC drives (15–110 kW, 200–480 VAC #QYM001 J1688
| Parameter | Technical Value |
|---|---|
| Part Number | PN‑148275 (Revision 04; Spare Kit: SP‑152346) |
| Product Type | Digital I/O & Communication Interface Board |
| Primary Compatibility | PowerFlex 700/700S/700HF (15–110 kW, 200–480 VAC); pairs with PN‑204411 MCB and PN‑104993 power board |
| Logic Power Input | 24 VDC (±10% tolerance), 0.3 A max current draw |
| Digital Inputs | 8 channels (sink/source selectable, 24 VDC); input impedance 10 kΩ; response time <2 ms |
| Digital Outputs | 4 channels (Form C relay: 2 A @ 240 VAC / 3 A @ 24 VDC); 2 channels (solid‑state: 0.5 A @ 24 VDC) |
| Communication Interfaces | RS‑485 (Modbus RTU, 9.6–115.2 kbps); Drive Local Bus (DLB) for MCB synchronization; 20‑COMM‑D DeviceNet port |
| Isolation Rating | 1500 VAC (field I/O to logic); 500 VAC (channel‑to‑channel) |
| Protection Features | Overvoltage clamping (28 V threshold); reverse polarity protection; ESD protection (±8 kV air / ±4 kV contact) |
| Operating Temperature | 0–55°C (32–131°F); Storage: -40–85°C (-40–185°F) |
| Humidity Tolerance | 5%–95% RH, non‑condensing |
| Mounting Type | Drive‑chassis integrated (2 mounting clips); fits standard PowerFlex 700‑series chassis |
| Certifications | CE, UL Listed, cUL Certified, RoHS Compliant |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
