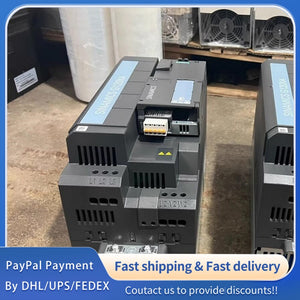

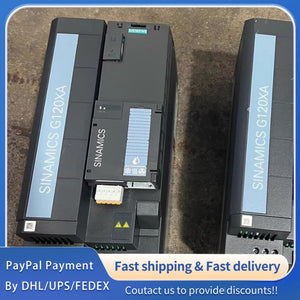

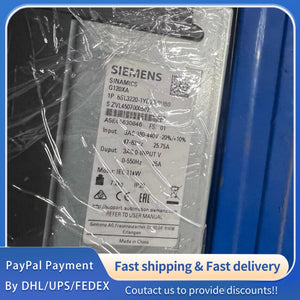

1 PCS USED SIEMENS SINAMICS G120XA 11kW (6SL3210-1YD26-0UB0)#LYQ007
1 PCS USED SIEMENS SINAMICS G120XA 11kW (6SL3210-1YD26-0UB0)#LYQ007
| Parameter | Value |
|---|---|
| Ordering Data | |
| MLFB | 6SL3210-1YD26-0UB0 |
| Rated Power (IEC 400V, LO) | 11.0 kW |
| Input Data | |
| Number of Phases | 3 AC |
| Line Voltage | 380 ... 440 V, +10% / -20% |
| Line Frequency | 47 ... 63 Hz |
| Rated Input Current (LO) | 25.8 A |
| Output Data | |
| Rated Output Voltage | 0 ... 400 V |
| Rated Output Current (LO) | 25.0 A |
| Max. Output Current | 27.5 A |
| Pulse Frequency | 4 kHz |
| Output Frequency (Vector Control) | 0 ... 240 Hz |
| Output Frequency (V/f Control) | 0 ... 550 Hz |
| Overload Capability (LO) | 110% of base load current for 60 s in a 300 s cycle |
| General Technical Specifications | |
| Power Factor λ | 0.75 ... 0.93 |
| Offset Factor cos φ | 0.99 |
| Efficiency η | 0.97 |
| Sound Pressure Level (1m) | 67.0 dB |
| Power Loss | 0.306 kW |
| Filter Class (Integrated) | Unfiltered |
| Ambient Conditions | |
| Cooling | Air cooling with integrated fan |
| Cooling Air Requirement | 0.018 m³/s |
| Installation Altitude | Up to 1000 m |
| Ambient Temperature (Operation) | -20 ... 60 °C |
| Ambient Temperature (Transport/Storage) | -40 ... 70 °C |
| Relative Humidity (Max.) | 95% (non-condensing at 40 °C) |
| Mechanical Data | |
| Degree of Protection | IP20 / UL open type |
| Frame Size | FSC |
| Net Weight | 7 kg |
| Dimensions (W×H×D) | 140 × 295 × 224 mm |
| Inputs / Outputs | |
| Standard Digital Inputs | 6 |
| Digital Outputs (Relay) | 4 (DC 30 V, 1.0 A) |
| Analog/Digital Inputs | 2 (Differential, 12-bit) |
| Analog Outputs | 2 (Non-isolated) |
| Motor Temp. Sensor Input | 1 (PTC, KTY, PT1000) |
| Communication | |
| Protocols | USS, Modbus RTU, BACnet MS/TP |
| Standards | CE, EAC, RCM, RoHS II |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
