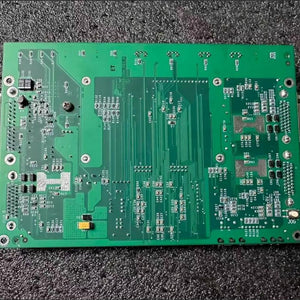

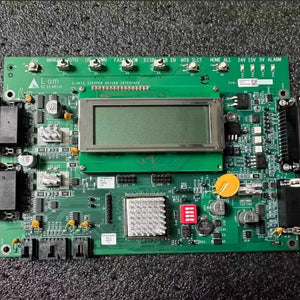

1 PCS used Lam Research Control Board 810-086590-004 #LYQ007
1 PCS used Lam Research Control Board 810-086590-004 #LYQ007
| Parameter | Value |
|---|---|
| Manufacturer | Lam Research |
| Part Number | 810-086590-004 |
| Product Type | Control Board (PCB) |
| Board Dimensions | Standard SEM EIA 3U/6U form factor (custom for Lam equipment) |
| Board Layers | Multi-layer PCB (typically 6–12 layers, high-speed) |
| Power Input | +5 VDC, ±12 VDC, +24 VDC (system backplane) |
| Logic Voltage | 3.3 V / 5 V TTL compatible |
| Operating Temperature | 0°C to +70°C (industrial) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Interface | VME64x / System backplane (Lam proprietary) |
| I/O Type | Digital TTL I/O, analog I/O, status/control signals |
| Isolation | Opto-isolated I/O (selected channels) |
| Communication | Onboard logic controller, inter-board communication bus |
| MTBF | ≥ 100,000 hours (at 25°C) |
| Compliance | IPC-6012, SEMI S2, CE (industrial) |
| Application | Used in Lam etch/deposition systems (e.g., 2300 Series) |
| Function | System control, I/O logic, safety interlocks, sequencing |
| Revision | -004 (hardware revision) |
| Weight | ~0.4–0.6 kg |
| RoHS | Compliant (per Lam manufacturing standard) |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
