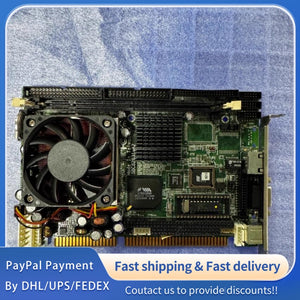

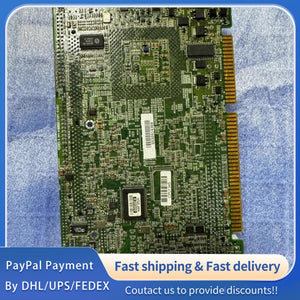

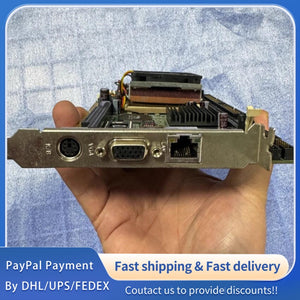

1 PCS used VIA SBC82631vA2 Industrial Control Mainboard #LYQ007
1 PCS used VIA SBC82631vA2 Industrial Control Mainboard #LYQ007
1 PCS used VIA SBC82631vA2 Industrial Control Mainboard #LYQ007
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
Product Name
|
Industrial Control Mainboard
|
-
|
Original VIA factory product, SBC82631vA2 model, specialized for industrial automation control scenarios
|
|
Model Number
|
SBC82631vA2
|
-
|
Unique model code for VIA industrial control mainboard, consistent with factory calibration and quality standards
|
|
Brand & Manufacturer
|
VIA Technologies, Inc.
|
-
|
Complies with VIA strict industrial control component standards, ensuring high stability, anti-interference and long service life
|
|
Function Type
|
Industrial Automation Control, Signal Processing, Equipment Drive Control, Data Transmission & Monitoring
|
-
|
Integrates core control functions, suitable for various industrial equipment control systems, supporting multi-signal interaction and 24/7 continuous operation
|
|
Working Voltage Type
|
Single/Dual DC Power Supply (Optional)
|
-
|
Adapt to industrial-grade DC power input, ensuring stable power supply and reliable operation under complex industrial environment
|
|
Operating Mode
|
Continuous Working (24/7)
|
-
|
No performance degradation during long-term continuous operation, meeting the needs of industrial production uninterrupted work
|
|
Form Factor
|
Mini-ITX / Industrial Standard Form Factor
|
-
|
Compact design, suitable for narrow installation spaces in industrial equipment, compatible with standard industrial chassis
|
2. Core Component Specifications
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
CPU
|
VIA Eden X4 / VIA QuadCore-E Series (Optional), 1.0-1.5GHz
|
-
|
Low power consumption, high stability, specially optimized for industrial control scenarios
|
|
Chipset
|
VIA VX11H / VIA VX900 (Matching CPU Model)
|
-
|
Integrated high-performance graphics and I/O controller, ensuring efficient data processing and signal transmission
|
|
Memory
|
1x DDR3/DDR3L SO-DIMM Slot, Max 8GB, Support 1333/1600MHz
|
GB
|
ECC optional (for industrial-grade high-reliability requirements), stable operation under harsh environment
|
|
Storage Interface
|
2x SATA III (6Gb/s), 1x mSATA Slot (for SSD)
|
-
|
Support industrial-grade SSD, shockproof and anti-vibration, adapting to industrial field environment
|
|
Graphics Controller
|
Integrated VIA Chrome9 HC3 Graphics, Support VGA/DVI/HDMI (Optional)
|
-
|
Support maximum resolution 1920x1200@60Hz, suitable for industrial monitoring and display scenarios
|
3. Electrical Performance Specifications (Ta = 25℃, RH = 60%, Standard Working Conditions)
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Input Voltage Range (DC)
|
9
|
12
|
24
|
VDC
|
Wide voltage input, anti-voltage fluctuation, compatible with standard industrial power supply system
|
|
Total Operating Current
|
0.8
|
1.2
|
1.8
|
A
|
Low power consumption design, under full load operation, ensuring energy-saving and stable performance
|
|
Signal Input Voltage Range
|
0
|
5
|
5.5
|
VDC
|
Compatible with standard TTL signal input, anti-interference, ensuring accurate signal collection and transmission
|
|
Signal Output Voltage Range
|
0
|
5
|
5.5
|
VDC
|
Stable signal output, low ripple, ensuring reliable signal interaction with other industrial equipment components
|
|
Signal Response Time
|
-
|
10
|
20
|
μs
|
Fast signal response, realizing real-time control and signal conversion, meeting high-speed industrial control requirements
|
|
Insulation Resistance
|
200
|
500
|
-
|
MΩ
|
High insulation performance, effectively preventing short circuit and leakage, ensuring equipment and personnel safety
|
|
Power Supply Ripple
|
-
|
50
|
100
|
mVpp
|
Low power supply ripple, reducing interference to signal processing, ensuring stable operation of the mainboard
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
