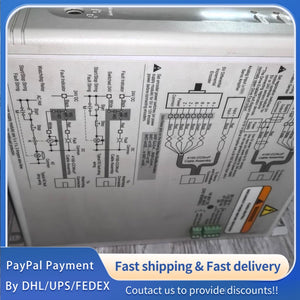

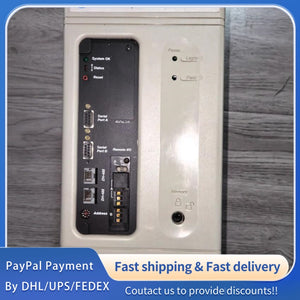

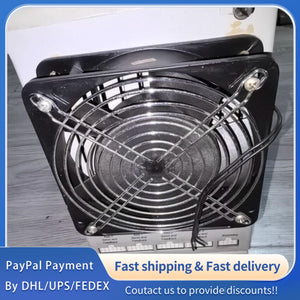

1 PCS USED Allen Bradley 4100-234-R IMC S Class Controller #LYQ007
1 PCS USED Allen Bradley 4100-234-R IMC S Class Controller #LYQ007
1 PCS USED Allen Bradley 4100-234-R IMC S Class Controller #LYQ007
1. General Information (Original Allen Bradley Factory Standard)
|
Parameter
|
Specification
|
Unit
|
Notes
|
|
Brand
|
Allen Bradley (Rockwell Automation)
|
-
|
Genuine, Original Allen Bradley Factory Production, 100% Authentic, Industrial-Grade Motion Controller[3]
|
|
Product Model
|
4100-234-R
|
-
|
Original Allen Bradley Model, Factory Calibrated, No Modification, Belongs to IMC S Class Series[3]
|
|
Product Name
|
IMC S Class Controller
|
-
|
Stand-Alone Compact Motion Controller, Designed for Industrial Automation Motion Control Scenarios[3][4]
|
|
Product Type
|
Microprocessor-Based Compact Motion Controller
|
-
|
With Remote I/O Option, Without Axis Link Option, Suitable for Industrial Automation Control Systems[1][3]
|
|
Microprocessor
|
Intel i960 Microprocessor
|
-
|
High-performance processor, ensuring efficient operation and stable motion control performance[1][3]
|
|
Processor Speed
|
16 MHz
|
MHz
|
Fast processing speed, supporting efficient multi-task operation and real-time motion control[1][3]
|
|
Number of Axes
|
4 Axes
|
-
|
Supports 4-axis motion control, meeting multi-axis coordination control requirements[1][3][4]
|
|
Operating System
|
Multi-tasking Operating System (Max. 10 Tasks Simultaneously)
|
-
|
Efficient multi-task processing capability, adapting to complex industrial control scenarios[1][3]
|
|
User Value Process Capacity
|
Max. 2000 User Value Processes
|
-
|
Stores data in 16-bit floating-point format, ensuring data accuracy and processing efficiency[1]
|
|
Power Input Voltage
|
90 ~ 132 VAC; 175 ~ 264 VAC
|
VAC
|
Dual voltage range, adapting to different industrial power supply specifications[1][3][4]
|
|
Power Input Frequency
|
47 ~ 63 Hz
|
Hz
|
Stable frequency adaptation, ensuring reliable operation under different power grid conditions[1][3]
|
|
Power Input Current
|
3 A
|
A
|
Matches industrial power supply capacity, ensuring stable power input and device operation[1][3]
|
|
I/O Input Power Supply
|
5 ~ 40 VDC (Nominal: 24 VDC), Max Current 3 A
|
VDC/A
|
Stable I/O power supply, supporting normal operation of various I/O modules[1][3][4]
|
|
Fuse Specification
|
3 A, ¼ × 1¼ Slow-Blow Fuse
|
-
|
Protects the controller from overcurrent damage, ensuring safe and stable operation[1][3]
|
|
Analog Output
|
4 Isolated & Configurable; Control Resolution: 6 Bits (305 μV); Output Range: ±10 VDC or ±150 mA
|
μV/VDC/mA
|
High-resolution analog output, supporting precise control of external devices[1][3]
|
|
Offset Voltage Output
|
±80 mV (At 220 Ω Voltage Resistance)
|
mV
|
Low offset voltage, ensuring accuracy and stability of analog output signals[1][3]
|
|
Discrete I/O
|
20 Dedicated Optically Isolated Discrete Inputs; Max 128 Discrete I/O Points (With 8 Flex I/O Modules)
|
-
|
Compatible with Flex I/O Modules, expanding I/O capacity to meet diverse control needs[1][3]
|
|
Communication Options
|
Serial Port, Remote I/O; Direct Connection to PLC via Block/Discrete Transfers
|
-
|
Smooth communication with various industrial devices, facilitating system integration[1][3][4]
|
|
Programming Method
|
GML Programming; RS-232C File Transfer
|
-
|
Standard industrial programming method, easy to program and maintain[1]
|
|
Data Retention
|
Write-Protected Battery-Supported Volatile Memory; 10-Year Battery Life
|
Years
|
Reliable data retention, preventing data loss during power failure[1]
|
|
UPC
|
662453562896
|
-
|
Original factory product identification code, ensuring product authenticity[3]
|
