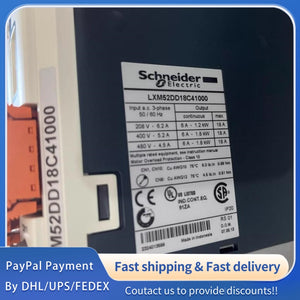

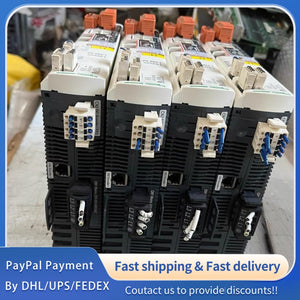

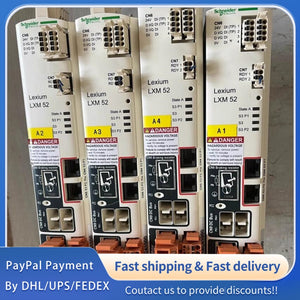

1 PCS USED Schneider Electric LXM52DD18C41000 (Lexium 52) #LYQ007
1 PCS USED Schneider Electric LXM52DD18C41000 (Lexium 52) #LYQ007
| Parameter | Value |
|---|---|
| Product Identification | |
| Model | LXM52DD18C41000 |
| Series | Lexium 52 (PacDrive 3) |
| Type | Single-axis servo drive |
| Power Supply | |
| Rated supply voltage (3-phase AC) | 208...480 V |
| Supply frequency | 50 (-5%)...60 Hz (+5%) |
| Input current | 6.9 A |
| DC bus voltage | 294...679 Vdc |
| DC bus capacity | 390 µF |
| Overvoltage | 820 Vdc |
| Motor Output | |
| Rated output current (8 kHz, 50°C) | 6.0 A eff |
| Peak output current (8 kHz, 50°C) | 18.0 A eff |
| Rated power (without mains reactor) | 1.8 kW |
| Rated power (with mains reactor) | 3.3 kW |
| Maximum motor cable length | 75 m |
| Control & Logic | |
| Control voltage | 24 Vdc (-15...+20%) |
| Control current (without brake) | < 1 A |
| Control current (with brake) | 2.7 A |
| Communication interface | SERCOS III |
| Digital I/O | 4 DI, 4 DO (24 Vdc) |
| Encoder supply | 10 Vdc, max 125 mA |
| Braking Resistor | |
| Internal resistance | 30 Ω |
| Internal continuous power | 60 W |
| Internal peak energy | 600 Ws |
| External min resistance | 25 Ω |
| External max resistance | 50 Ω |
| External max power | 800 W |
| Mechanical | |
| Dimensions (W x H x D) | 108 x 274.1 x 217 mm |
| Weight | 1.9 kg |
| Protection rating | IP20 |
| Cooling | Internal fan |
| Safety & Standards | |
| STO reaction time | ≤ 10 ms |
| EMC | C3 (IEC/EN 61800-3) |
| Overvoltage category | III (EN 61800-5-1) |
| Pollution degree | 2 |
| Certifications | CE, UL 508C |
