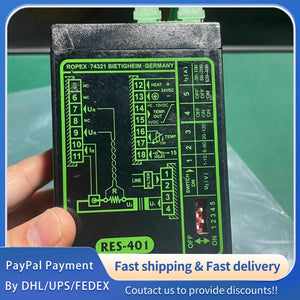

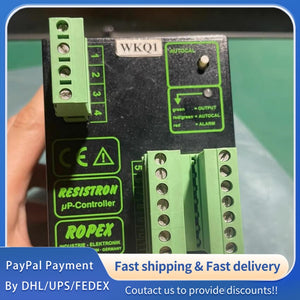

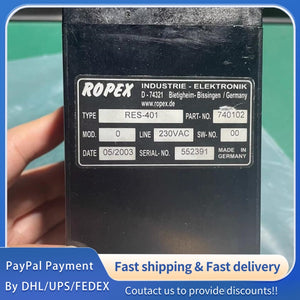

1 PCS USED temperature controller ROPEX RES-401 (740102) #LYQ007
1 PCS USED temperature controller ROPEX RES-401 (740102) #LYQ007
| Parameter | Value |
|---|---|
| Model | RES-401 (P/N: 740102) |
| Supply Voltage | 230VAC -15%…+10% (187…264VAC) |
| Line Frequency | 47…63Hz, automatic adjustment |
| Temperature Range | 0…300°C (for Alloy‑A20, TCR=1100ppm/K) |
| Control Principle | Resistance measurement (50/60 times/sec) + phase‑angle control |
| Secondary Voltage (AUTORANGE) | 0.4…120VAC |
| Secondary Current (AUTORANGE) | 30…500A |
| Setpoint Input | External 2kΩ potentiometer (PD‑3), 0…2kΩ = 0…300°C |
| Analog Output (Actual Temp.) | 0…10VDC, Imax=5mA; Accuracy: ±1% + 50mV; 0VDC=0°C, 10VDC=300°C |
| Logic Inputs (START, etc.) | 24VDC (12…30VDC), isolated; LOW: 0…2VDC, HIGH: 12…30VDC |
| Max. Primary Current | 5A (100% duty cycle); 25A (20% duty cycle) |
| Power Dissipation | Max. 20W |
| Ambient Temperature | +5…+45°C |
| Protection Class | IP20 |
| Dimensions (W×H×D) | 90×135×75mm (incl. terminals) |
| Mounting | DIN rail (TS35, 35mm) |
| Weight | Approx. 0.7kg (with connectors) |
| Housing Material | Polycarbonate, UL‑94‑V0 |
| Terminals | Plug‑in; 0.2…2.5mm² (AWG 24…12) |
| Key Functions | AUTOCAL (auto zero calibration), AUTOTUNE (auto tuning), AUTORANGE (auto range), AUTOCOMP (phase angle compensation), fault diagnosis (LED) |
| Standards | EN 61010‑1, EN 61558, RoHS, CE |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
