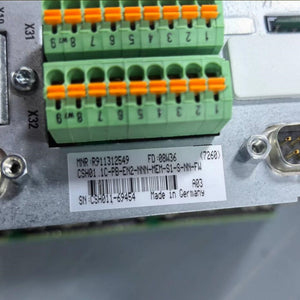

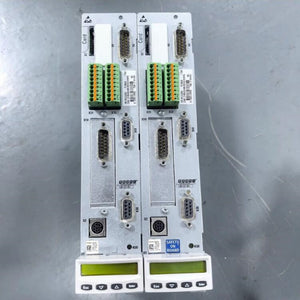

1 PCS USED Bosch Rexroth Axis Card CSH01.1C-PB-EN2-NNN-MEM-S1-S-NN-FW (R911312549)#LYQ007
1 PCS USED Bosch Rexroth Axis Card CSH01.1C-PB-EN2-NNN-MEM-S1-S-NN-FW (R911312549)#LYQ007
| Parameter | Value |
|---|---|
| Manufacturer | Bosch Rexroth |
| Model | CSH01.1C-PB-EN2-NNN-MEM-S1-S-NN-FW |
| Order No. | R911312549 |
| Product Type | IndraDrive Control Section (Single-axis) |
| Master Communication | PROFIBUS (PB) |
| Encoder Interface 1 | EN2 (5V encoder interface, supports EnDat 2.1, 1 Vpp, TTL) |
| Encoder Interface 2 | NNN (Not equipped) |
| Memory Card Slot | MEM (MMC card slot at X7 for parameter storage/firmware update) |
| Safety Option | S1 (Safety Technology I/O, Safe Torque Off) |
| Control Performance | |
| Current Control Cycle | 62.5–125 μs |
| Speed Control Cycle | 125–250 μs |
| Position Control Cycle | 250–500 μs |
| PWM Frequency | 2–16 kHz (adjustable in 2 kHz steps) |
| Electrical Data | |
| Supply Voltage | 24 V DC |
| Power Consumption | 7.5 W |
| Inrush Current | 4 A (max.) |
| Max. Pulse Width | 100 ms |
| I/O Interfaces | |
| Analog Inputs | 1 |
| Analog Outputs | 2 |
| Digital Inputs | 7–11 |
| Digital Outputs | 4 |
| Relay Outputs | 1 |
| Serial Interface | 1 × RS232 (X2) |
| Engineering Interface | Ethernet (X26) |
| Mechanical Data | |
| Dimensions (W×H×D) | 103 mm × 241 mm × 49.5 mm |
| Protection Class | IP20 |
| Environmental Data | |
| Ambient Temperature | 0 °C to +40 °C |
| Max. Installation Altitude | 1000 m above sea level |
| Cooling | Natural convection |
| Firmware | Not included (must be ordered separately) |
