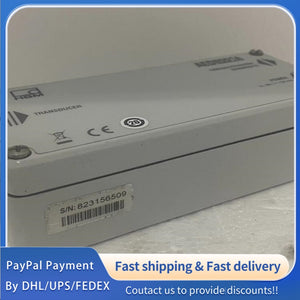

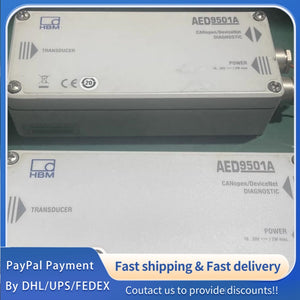

1 PCS USED HBM AED9501A Digital Transducer Electronics (Basic Device) #LYQ007
1 PCS USED HBM AED9501A Digital Transducer Electronics (Basic Device) #LYQ007
| Parameter | Value |
|---|---|
| Type | AED9501A |

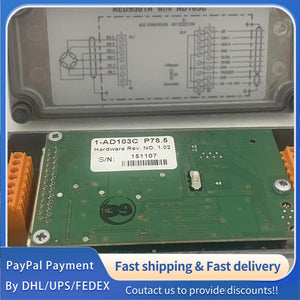

| Amplifier Board | AD103C (sold separately) |
| Measurement Signal Input | ±3 mV/V nominal, ±2 mV/V typical |
| Transducer Connection | Strain gage (1–4 full bridges, 350 Ω each); total bridge resistance 80–4000 Ω |
| Transducer Wiring | 6‑wire circuit |
| Max. Transducer Cable Length | ≤ 100 m |
| Bridge Excitation Voltage | 5 VDC |
| CANopen Interface | Protocol: CANopen; Bit rate: 10–1000 kbit/s; Node address: 1–127; Max. cable length: 5000–25 m (by baud rate) |
| DeviceNet Interface | Protocol: DeviceNet; Bit rate: 125–500 kbit/s; Node address: 1–63; Max. cable length: 1000–100 m |
| Diagnostic Bus | Protocol: ASCII/Binary; Baud rate: 38.4 kbit/s; Node address: 0–89; Max. cable length: 1000 m |
| Trigger Input (IN1) | Low: 0–1 V; High: 2–30 V; Input current: < 3 mA @ 30 V; Input resistance: 10 kΩ |
| Power Supply | Operating voltage: 10–30 VDC; Current consumption: ≤ 120 mA (no load cell) |
| Temperature Ranges | Nominal: −10…+40 °C (+14…+104 °F); Operating: −20…+60 °C (−4…+140 °F); Storage: −25…+85 °C (−13…+185 °F) |
| Mechanical | Dimensions (L×W×H): 190 × 65 × 40 mm; Weight: ~440 g (without AD10x); Protection: IP65 (DIN 40050 / IEC 529) |
