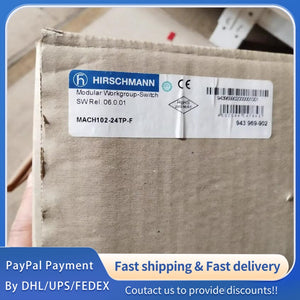

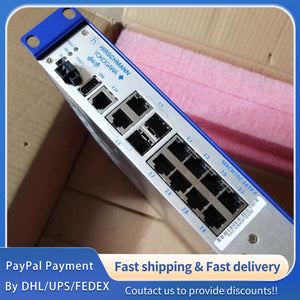

1 PCS new Hirschmann MACH102-24TP-F Switch#LYQ007
1 PCS new Hirschmann MACH102-24TP-F Switch#LYQ007
| Category | Parameter | Value |
|---|---|---|
| Ordering & Identity | Manufacturer Part Number | MACH102-24TP-F |
| Order Number | 943 969-401 | |
| Brand | Hirschmann (A Belden Brand) | |
| Core Switching | Switch Type | Managed Industrial Workgroup Switch |
| Switching Architecture | Store-and-Forward | |
| Software Layer | Layer 2 Professional | |
| Total Ports | 26 Ports | |
| Ethernet Ports | 10/100BASE-TX | 24 x RJ45 (0–100 m) |
| Gigabit Combo Ports | 2 x RJ45/SFP (10/100/1000BASE-T or SFP) | |
| Auxiliary Interfaces | Serial Configuration | 1 x V.24 (RJ11 socket) |
| USB | 1 x USB (for ACA21-USB auto-configuration adapter) | |
| Signal Contact | 1 x 2-pin pluggable terminal block; max. 1 A, 24 V DC/AC (manual/automatic switchable output) | |
| Power Supply | Operating Voltage | 100–240 V AC, 47–63 Hz (redundant) |
| Rated Current | 0.4–0.2 A | |
| Power Consumption | 17 W | |
| Thermal Dissipation | 58 Btu (IT)/h | |
| Performance & Redundancy | Redundancy Protocols | HIPER-Ring (max. 50 switches, reconfiguration < 0.3 s), MRP (IEC), RSTP 802.1D-2004 |
| Additional Redundancy | Dual Homing, Link Aggregation, Redundant Power Supply | |
| Flow Control | IEEE 802.3x | |
| Management & Diagnostics | Management Interfaces | Serial, Web GUI, SNMP v1/v2/v3, CLI (Telnet), HTTP/TFTP |
| Discovery & Auto-Config | LLDP-MED (802.1AB), HIDiscovery, BootP/DHCP (Option 82), ACD11/ACA21-USB | |
| Diagnostics | LEDs, Log/Syslog, Relay Contact, RMON, 1:1/n:1 Port Mirroring, Cable Tester (TX), SFP Diagnostics (temp, Rx/Tx power), Duplex Mismatch Detection | |
| Security | Access Control | 802.1x Authentication, Port Security (IP/MAC), SSH |
| Quality of Service | QoS Classes | 4 Classes |
| Prioritization | IEEE 802.1D/p, TOS/DiffServ, MAC/IP Priority, Layer 2 TOS Mapping | |
| Traffic Management | Traffic Shaping (Unicast/Multicast/Broadcast), Broadcast Limiter | |
| Industrial Profiles | Supported Protocols | EtherNet/IP, PROFINET (configurable via STEP7/Control Logix) |
| Time Synchronization | Features | SNTP Server, Real-Time Clock (with energy buffer) |
| Mechanical | Dimensions (W×H×D) | 448 × 44 × 310 mm (without fixing bracket) |
| Mounting | 19" Control Cabinet Rack | |
| Weight | 4.10 kg | |
| Protection Class | IP20 | |
| Environmental | Operating Temperature | 0 °C to +50 °C |
| Storage/Transport Temperature | -20 °C to +85 °C | |
| Relative Humidity | 10% to 95% (non-condensing) | |
| MTBF | 14.93 years (MIL-HDBK-217F Gb, 25 °C) | |
| EMC Compliance | Immunity (ESD) | EN 61000-4-2: 4 kV contact, 8 kV air |
| Immunity (EM Field) | EN 61000-4-3: 10 V/m (80–2700 MHz) | |
| Immunity (Fast Transients) | EN 61000-4-4: 2 kV power line, 4 kV data line | |
| Immunity (Surge) | EN 61000-4-5: 2 kV L-E, 1 kV L-L (power); 4 kV (data) | |
| Immunity (Conducted) | EN 61000-4-6: 10 V (150 kHz–80 MHz) | |
| Emissions | EN 55022 Class A, FCC CFR47 Part 15 Class A | |
| Safety Approvals | Standards | cUL 508 (Industrial Control), cUL 60950-1 (IT Equipment) |

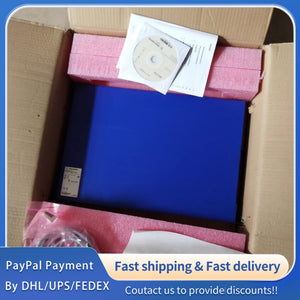

| Scope of Delivery | Included Items | Device, Signal contact terminal block, 2 pre-assembled brackets (with screws), Adhesive housing feet, Euro-model power cable, CD-ROM (User/Installation Manuals) |
