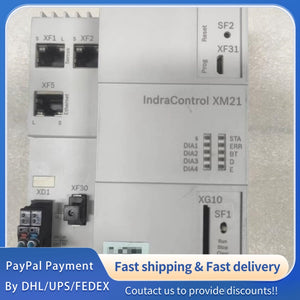

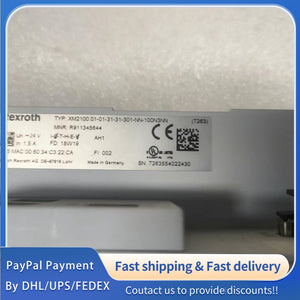

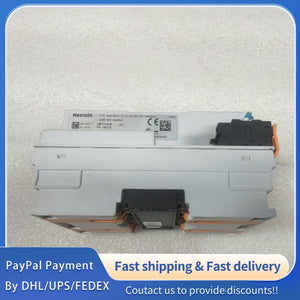

1 PCS used Rexroth Controller XM2100.01-01-31-31-301-NN-100N3NN #LYQ007
1 PCS used Rexroth Controller XM2100.01-01-31-31-301-NN-100N3NN #LYQ007
|
Item
|
Specification
|
|
Model Number
|
XM2100.01-01-31-31-301-NN-100N3NN
|
|
Product Name
|
Rexroth Industrial Precision Motion Controller
|
|
Product Series
|
Rexroth XM2100 Series, Multi-Axis Motion Control Controller for Industrial Automation
|
|
Brand
|
Bosch Rexroth AG
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Notes
|
|
Controllable Axes
|
4
|
4
|
4
|
Axes
|
Synchronous motion control, support for linear/circular interpolation
|
|
Positioning Accuracy
|
-
|
±0.01
|
±0.05
|
mm
|
Based on 1m travel distance, with linear encoder feedback
|
|
Maximum Speed
|
-
|
5
|
10
|
m/s
|
Dependent on matched drive and motor specifications
|
|
Maximum Acceleration
|
-
|
50
|
200
|
m/s²
|
Adjustable via configuration software, subject to mechanical limits
|
|
Control Cycle
|
0.1
|
1
|
10
|
ms
|
Software-configurable, real-time motion control cycle
|
|
Encoder Input Resolution
|
1024
|
2048
|
16384
|
Lines/rev
|
Support for incremental/absolute encoders, differential signal input
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Notes
|
|
Supply Voltage
|
18
|
24
|
30
|
V DC
|
Redundant power supply supported, reverse polarity protection
|
|
Power Consumption
|
-
|
25
|
40
|
W
|
Full load condition, including I/O and communication modules
|
|
Analog Input Channels
|
8
|
8
|
8
|
Channels
|
4~20mA DC / 0~10V DC, 16-bit resolution, software-configurable
|
|
Analog Output Channels
|
4
|
4
|
4
|
Channels
|
4~20mA DC / 0~10V DC, 16-bit resolution, short-circuit protected
|
|
Digital Input Channels
|
16
|
16
|
16
|
Channels
|
24V DC, sinking/sourcing, response time ≤100μs
|
|
Digital Output Channels
|
16
|
16
|
16
|
Channels
|
24V DC, 0.5A per channel, overcurrent protection
|
|
Isolation Voltage
|
-
|
2500
|
-
|
Vrms
|
Channel to channel, channel to ground, 1 minute duration per IEC 61131-2
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
