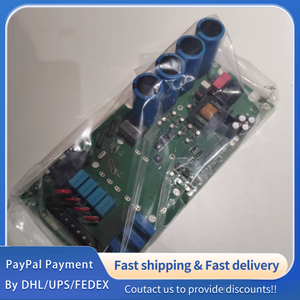

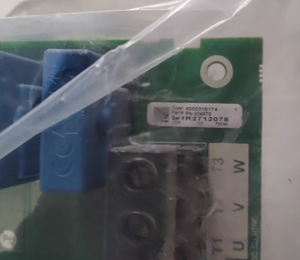

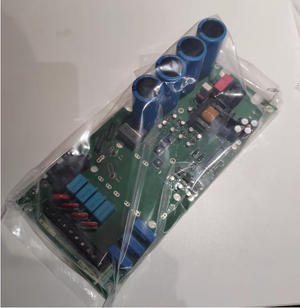

1 PC NEW PN-204970 for the analog I/O expansion board of ABB ACS880 series industrial frequency converters#QYM001 J1688
1 PC NEW PN-204970 for the analog I/O expansion board of ABB ACS880 series industrial frequency converters#QYM001 J1688
| Parameter Category | Core Details |
|---|---|
| Compatible Drives | ABB ACS880 series industrial frequency converters, corresponding to power range 15–250kW (subject to the main drive model) |
| Core Functions | Analog signal acquisition and conversion, 4–20mA/0–10V signal input/output processing, signal isolation and anti-interference, analog value scaling and calibration, fault detection of analog channels |
| Power Supply | Control power supply: DC 24V (derived from the drive’s internal auxiliary power supply); Power consumption ≤ 5W |
| Interface Configuration | 4-channel analog inputs (configurable for 4–20mA current signal or 0–10V voltage signal); 2-channel analog outputs (4–20mA current signal, load resistance ≤ 500Ω); Standard screw terminal connections |
| Protection Functions | Analog channel overvoltage protection, short-circuit protection for output channels, ESD protection for signal ports; Compliant with IEC 61800-5-1 |
| Environment & Structure | Operating temperature: -10℃ ~ 55℃; Storage temperature: -40℃ ~ 85℃; PCB material: FR-4 with anti-corrosion coating; Protection class: IP20 (cabinet mounting) |
| Physical Specifications | Dimensions: approx. 140×100×28mm; Weight: approx. 180g; PCB flame retardant rating: 94V-0 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
