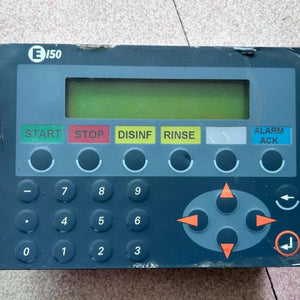

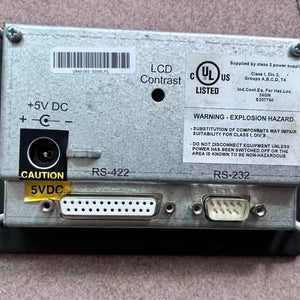

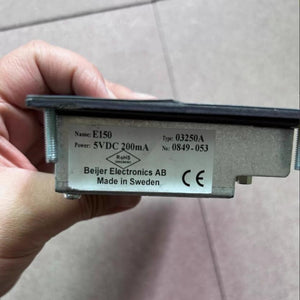

1 PCS USED Beijer E150 (Type 03250A) Operator Interface Panel #LYQ007
1 PCS USED Beijer E150 (Type 03250A) Operator Interface Panel #LYQ007
| Parameter | Value |
|---|---|
| Manufacturer | Beijer Electronics |
| Model | E150 |
| Type Code | 03250A |
| Product Line | EXTER Series |
| Display Type | TFT-LCD |
| Display Size | 15.0 inches |
| Resolution | 1024 × 768 pixels |
| Color Depth | 64K colors |
| Backlight | CCFL, lifetime >35,000 h at 25°C |
| Active Display Area | 304.1 × 228.1 mm |
| Touch Screen | Yes, Polyester on glass |
| Touch Lifetime | 1,000,000 finger operations |
| Front Panel Protection | IP66 |
| Rear Panel Protection | IP20 |
| Housing Material | Powder‑coated aluminum |
| Weight | 4.9 kg |
| Power Supply | +24 V DC (20–30 V DC) |
| Power Consumption | Normal: 1.2 A; Max: 1.7 A |
| Fuse | Internal DC fuse, 3.15 AT, 5 × 20 mm |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 10–90% RH (non‑condensing) |
| Front Panel Dimensions (W×H×D) | 398 × 304 × 6 mm |
| Mounting Depth | 60 mm (160 mm including clearance) |
| Flash Memory | 32 MB (12 MB for application) |
| RAM | 64 MB |
| Memory Expansion | Compact Flash slot (Type I/II) |
| Serial Ports | RS232C (9‑pin D‑sub), RS422/485 (25‑pin D‑sub) |
| Ethernet | Shielded RJ45 |
| USB | Host (Type A, 1.1, 500 mA), Device (Type B, 1.1) |
| Real‑Time Clock | ±20 PPM; max error 1 min/month at 25°C |
| RTC Battery | CR2450, min lifetime 3 years |
| Buzzer | Integrated |
