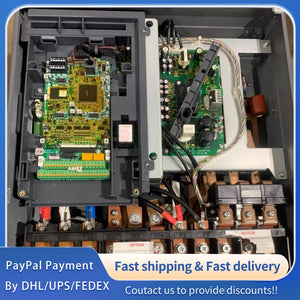

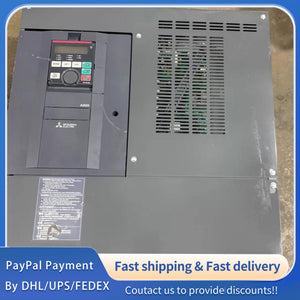

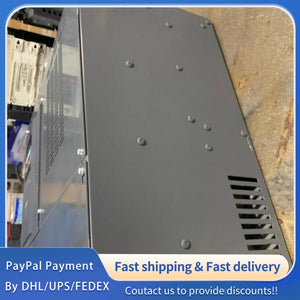

1 PCS USED Mitsubishi FR-A840-01800-2-60 (55kW) Inverter #LYQ007
1 PCS USED Mitsubishi FR-A840-01800-2-60 (55kW) Inverter #LYQ007
| Parameter | Specification |
|---|---|
| Model | FR-A840-01800-2-60 |
| Series | FREQROL FR-A800 Plus |
| Applicable Motor Capacity (ND) | 55 kW (75 HP) |
| Applicable Motor Capacity (LD) | 75 kW (100 HP) |
| Applicable Motor Capacity (HD) | 45 kW (60 HP) |
| Applicable Motor Capacity (SLD) | 90 kW (120 HP) |
| Input Voltage | 3-phase 380–500 VAC, 50/60 Hz |
| Input Voltage Range | 323–550 VAC |
| Rated Output Current (ND) | 110 A |
| Rated Output Current (LD) | 144 A |
| Rated Output Current (HD) | 86 A |
| Rated Output Current (SLD) | 180 A |
| Output Frequency Range | 0.2–590 Hz |
| Control Methods | V/F control, Real Sensorless Vector Control, PM Sensorless Vector Control, Magnetic Flux Vector Control (with FR-A8AP) |
| Motor Types | Induction Motor (IM), Permanent Magnet Motor (PM) |
| Overload Capacity (ND) | 150% for 1 min, 200% for 3 s (at 50°C) |
| Overload Capacity (HD) | 200% for 1 min, 250% for 3 s (at 50°C) |
| Rated Output Capacity (ND) | 66 kVA |
| Rated Output Capacity (LD) | 110 kVA |
| Rated Output Capacity (HD) | 66 kVA |
| Rated Output Capacity (SLD) | 137 kVA |
| Power Loss (ND) | 1290 W |
| Power Loss (LD) | 1640 W |
| Power Loss (HD) | 1060 W |
| Power Loss (SLD) | 2000 W |
| Standby Power Consumption | 28 W |
| Protection Degree | IP00 |
| Built-in Network | CC-Link IE Field Basic, Modbus/TCP, SLMP, iQSS |
| Ethernet Port | 1 port |
| Analog Inputs | 1 ch (0–5 VDC / 0–10 VDC / 4–20 mA) |
| Analog Outputs | 1 ch (0–10 VDC), 1 ch (0–20 mA) |
| Dimensions (W×H×D) | 435 × 550 × 250 mm |
| Weight | 43.1 kg |
| Cooling Method | Forced air cooling |
| Conformal Coating | Yes (IEC 60721-3-3 3S2, 3C2) |
| Certifications | UL, cUL, CE, KC, EAC |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
