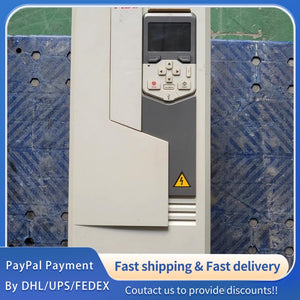

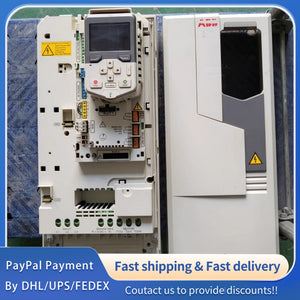

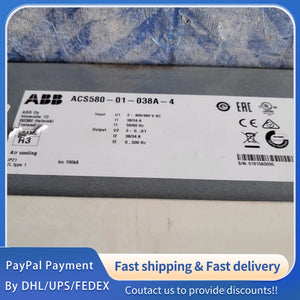

1 PCS USED ABB ACS580-01-038A-4 inverter#LYQ007
1 PCS USED ABB ACS580-01-038A-4 inverter#LYQ007
| Parameter | Value |
|---|---|
| Model | ACS580-01-038A-4 |
| Frame Size | R3 |
| Input Voltage | 3‑phase 380–480 V, ±10%/–15%, 50/60 Hz |
| Nominal Output Current (Iₙ) | 38 A (400 V class) |
| Light‑Duty Current (I_LD) | 36.1 A (380–415 V) |
| Heavy‑Duty Current (I_HD) | 31.6 A (380–415 V) |
| Max Output Current (I_max) | 56.9 A (380–415 V, 2 s) |
| Nominal Power (Pₙ) | 18.5 kW (light‑duty), 15 kW (heavy‑duty) |
| Output Frequency | 0–500 Hz |
| Control Modes | V/f, Sensorless Vector, DTC |
| Overload Capability | 110% I_LD for 60 s / 10 min; 150% I_HD for 60 s / 10 min |
| Enclosure | IP21 (wall‑mount) |
| Dimensions (W×H×D) | 203 × 490 × 229 mm |
| Weight | 13 kg |
| Cooling | Forced air, redundant fans |
| Heat Loss | 525 W (max) |
| I/O (Standard) | 6 DI, 2 AI, 2 AO, 3 relay outputs, STO (SIL3) |
| Communication | Modbus RTU (built‑in); Profibus, PROFINET via option |
| EMC | C2 (EN 61800‑3) |
| Ambient Temp | –15 to +40 °C (derate above 40 °C) |
| Certifications | CE, UL, cUL, IEC 61800‑5‑1/‑5‑2 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
