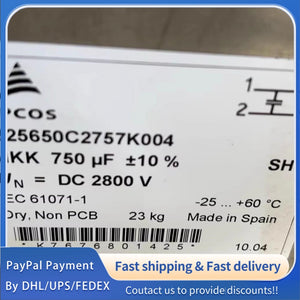

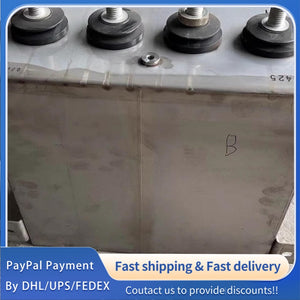

1 PCS USED EPCOS (TDK) Capacitor B25650C2757K004 #LYQ007
1 PCS USED EPCOS (TDK) Capacitor B25650C2757K004 #LYQ007
| Parameter | Value | Unit |
|---|---|---|
| Manufacturer | EPCOS (TDK Electronics AG) | - |
| Part Number | B25650C2757K004 | - |
| Series | MKK-DC / B25650C (DC Link Power Capacitor) | - |
| Capacitance (C_N) | 750 | µF |
| Capacitance Tolerance | ±10 | % |
| Rated DC Voltage (V_RDC) | 2700 | V |
| Maximum DC Voltage (V_MAX) | 3000 | V |
| Surge Voltage (V_S) | 3300 | V |
| Dielectric | Metallized Polypropylene (MKP) | - |
| Dissipation Factor (tan δ, 100 Hz) | ≤ 1.0 × 10⁻³ | - |
| Equivalent Series Resistance (ESR, 70 °C) | ~ 0.4 | mΩ |
| Stray Inductance (ESL) | ~ 30 | nH |
| Rated Ripple Current (I_R, 70 °C) | ~ 350 | A (RMS) |
| Peak Current (I_P) | ~ 20 | kA |
| Operating Temperature Range | -55 to +85 | °C |
| Hot‑Spot Temperature | ≤ 85 | °C |
| Lifetime (at V_RDC, 70 °C) | Up to 350,000 | h |
| Impregnation | Dry (Polyurethane Resin) | - |
| Protection Class | IP00 (Indoor) | - |

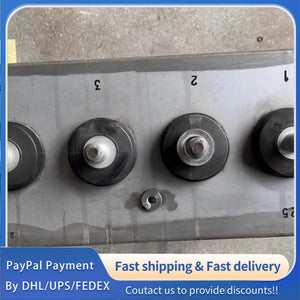

| Terminals | Screw Terminals (M8) | - |
| Mounting | Bottom M12 Stud | - |
| Standards | IEC 61071‑1, RoHS, UL 94 V‑0 | - |
| Application | DC Link for High‑Voltage Inverters, Traction Drives | - |
