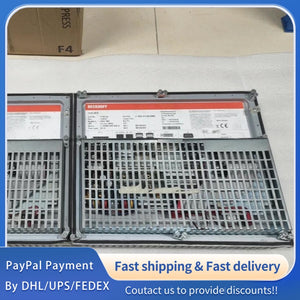

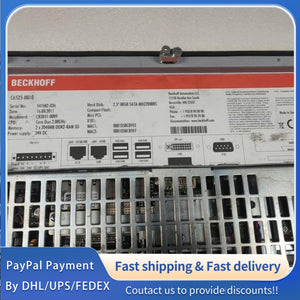

1 PCS USED Beckhoff Industrial PC C6525-0010 #LYQ007
1 PCS USED Beckhoff Industrial PC C6525-0010 #LYQ007
|
Item
|
Specification
|
|
Model Number
|
C6525-0010
|
|
Product Name
|
Beckhoff Compact Industrial PC
|
|
Product Series
|
Beckhoff C6525 Series, compact fanless industrial PC for automation control
|
|
Brand
|
Beckhoff Automation
|
|
Product Status
|
Industrial-Grade Original Equipment (German Manufacture, RoHS 2.0 Compliant, Anti-Vibration Packaging)
|
|
Parameter
|
Value
|
|
Processor (CPU)
|
Intel Atom® x7-E3950 (14nm), 4 Cores/4 Threads, Base Frequency 1.2GHz, Turbo Frequency up to 2.0GHz
|
|
Memory (RAM)
|
4GB DDR4-2133 SODIMM, Expandable up to 8GB (Single Slot)
|
|
Storage
|
32GB Industrial-grade mSATA SSD, Support SATA III Interface for Optional HDD/SSD Expansion
|
|
Graphics Controller
|
Integrated Intel HD Graphics 505, Support DirectX 12, OpenGL 4.5
|
|
BIOS
|
AMI BIOS, Support Remote Management, Boot Sequence Configuration
|
|
Operating System Support
|
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Linux (Debian/Ubuntu), TwinCAT 3
|
|
Parameter
|
Value
|
|
Ethernet Ports
|
2 x Gigabit Ethernet (RJ45), Support TCP/IP, EtherCAT, IEEE 802.3, Wake-on-LAN
|
|
USB Ports
|
4 x USB 3.0 (Type A), 2 x USB 2.0 (Type A), Support USB Power Management
|
|
Serial Ports
|
2 x RS-232/422/485 (DB9), Optically Isolated, Configurable via Software
|
|
Video Interfaces
|
1 x DisplayPort (v1.2), 1 x HDMI (v1.4), Support Dual Display, Max Resolution 4K@60Hz
|
|
Expansion Interfaces
|
1 x Mini PCIe Slot (for WLAN/WWAN/SSD), 1 x mSATA Slot (for Storage Expansion)
|
|
Audio Interface
|
1 x 3.5mm Audio Jack (Line Out/Microphone In), Integrated HD Audio Controller
|
