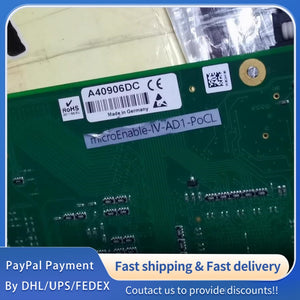

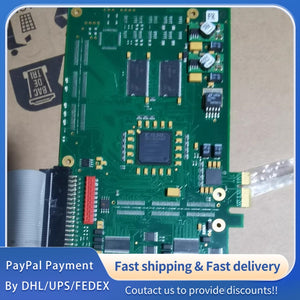

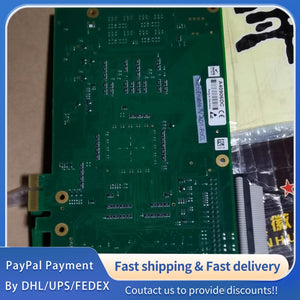

1 PCS used Silicon Software microEnable IV-AD1-POCL#LYQ007
1 PCS used Silicon Software microEnable IV-AD1-POCL#LYQ007
| Parameter | Value |
|---|---|
| Product Model | microEnable IV-AD1-POCL |
| Product Type | Dual-port Camera Link frame grabber with PoCL support |
| Host Interface | PCIe x1 (Gen1) |
| Sustainable Transfer Rate | up to 200 MB/s |
| On-board Memory | 128 MB DDR-RAM |
| FPGA Processor | Xilinx Spartan 3 |
| Camera Interface | Camera Link (BASE, Dual BASE, MEDIUM) |
| Camera Link Connectors | 2 × MDR26 / SDR26 (PoCL capable) |
| PoCL Support | Yes (SafePower, auto-detection) |
| Max. Camera Pixel Clock | 85 MHz |
| Max. Image Size (Area Scan) | 16k × 64k pixels |
| Max. Line Width (Line Scan) | 16k pixels |
| Pixel Formats | Grayscale: 8-bit, 16-bit
|
| Physical Dimensions | 167.64 mm (L) × 111.15 mm (H) |
| Weight | approx. 115 g |
| Power Consumption | 3.3 V @ 200 mA; 12 V @ 300 mA |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -50 °C to 80 °C |
| Compliances | CE, RoHS, WEEE, REACH |
| Supported OS | Windows XP/Vista/7 (32/64-bit), Linux (kernel 2.6.23+, 32/64-bit) |
| Software Compatibility | Common Vision Blox, HALCON, LabVIEW, VisionPro, MIL, Sapera, etc. |
| Trigger / I/O | Opto-isolated GPIO/Trigger interface |
| Special Features | Shaft encoder support, hardware ROI, real-time pre-processing, PoCL SafePower |
