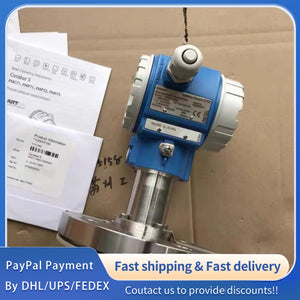

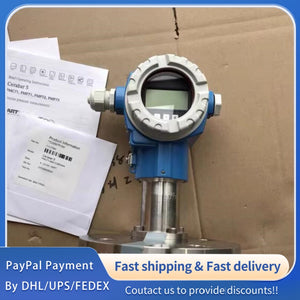

1 PCS new Endress+Hauser PMC71-ABA1C2B3AAA Transmitter #LYQ007
1 PCS new Endress+Hauser PMC71-ABA1C2B3AAA Transmitter #LYQ007
1 PCS new Endress+Hauser PMC71-ABA1C2B3AAA Transmitter #LYQ007
| Parameter Category | Parameter | Value | Remarks |
|---|---|---|---|

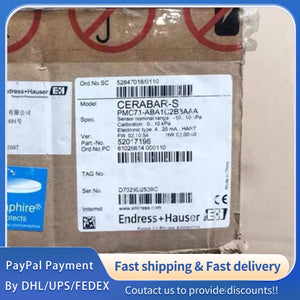

| Model Identification | Full Model | PMC71-ABA1C2B3AAA | Cerabar S Series Pressure Transmitter |
| Core Measurement | Measuring Principle | Capacitive ceramic measuring cell (Ceraphire®) | Oil-free, vacuum-proof membraneEndress+Hauser |
| Core Measurement | Measuring Type | Gauge Pressure (G) / Absolute Pressure (A) | Configurable per model variant |
| Core Measurement | Nominal Measuring Range | 100 mbar to 40 bar (1.5 psi to 600 psi) | URL = Upper Range Limit |
| Core Measurement | Minimum Calibratable Span | 5 mbar (0.075 psi) | Dependent on process connection |
| Core Measurement | Maximum Overpressure | 60 bar (900 psi) | Non-destructive limit |
| Accuracy & Stability | Reference Accuracy (Standard) | Up to ±0.075% of set span | IEC 60770; includes non-linearity, hysteresis, reproducibilityEndress+Hauser |
| Accuracy & Stability | Reference Accuracy (Platinum) | Up to ±0.05% of set span | Optional high-accuracy versionEndress+Hauser |
| Accuracy & Stability | Total Performance (25–100 mbar) | ±0.2% of URL | At –10 to +60°C (14 to 140°F)Endress+Hauser |
| Accuracy & Stability | Total Performance (1–40 bar) | ±0.15% of URL | At –10 to +60°C (14 to 140°F)Endress+Hauser |
| Accuracy & Stability | Long-Term Stability (1–40 bar) | ±0.2% of URL / 10 years | For gauge pressure sensorsEndress+Hauser |
| Accuracy & Stability | Maximum Turn-Down Ratio | 100:1 | Higher ratios on request |
| Environmental & Process Limits | Process Temperature Range | –20 to +150°C (–4 to +302°F) | High-temperature version; standard: –25 to +125°CEndress+Hauser |
| Environmental & Process Limits | Ambient Temperature Range (No Display) | –40 to +85°C (–40 to +185°F) | Without LCD display |
| Environmental & Process Limits | Ambient Temperature Range (With Display) | –20 to +70°C (–4 to +158°F) | With LCD display |
| Electrical Specifications | Supply Voltage (Non-Hazardous) | 10.5 to 45 V DC | For 4–20 mA HARTEndress+Hauser |
| Electrical Specifications | Supply Voltage (Ex ia) | 10.5 to 30 V DC | Intrinsically safe areasEndress+Hauser |
| Electrical Specifications | Output Signal | 4–20 mA with HART 7 | Superimposed digital protocolEndress+Hauser |
| Electrical Specifications | Warm-Up Time | < 10 s | For 4–20 mA HART outputEndress+Hauser |
| Mechanical Construction | Process Connection | Configurable: Threads (G1/2 to G2, MNPT1/2 to 2), Flanges (DN25 to DN80, ASME 1" to 4"), Hygienic (Tri-Clamp DIN11851) | Per order code configuration |
| Mechanical Construction | Wetted Materials | Process Membrane: 99.9% Al₂O₃ Ceramic (Ceraphire®); Gaskets: FKM/Viton | FKM temp range: –25 to +150°CEndress+Hauser |
| Mechanical Construction | Housing Material | Two-chamber: Aluminum or 316L Stainless Steel | Corrosion-resistant optionsEndress+Hauser |
| Mechanical Construction | Protection Class | IP67 / IP68 | IP68: 1.83 m H₂O for 24 h (T17 housing)Endress+Hauser |
| Safety & Certification | SIL Rating | SIL 2 / SIL 3 | Certified to IEC 61508 by TÜV SÜDEndress+Hauser |
| Safety & Certification | Explosion Protection | ATEX, IECEx, CSA, FM | Per order code and regional approvals |
| Safety & Certification | Other Approvals | WHG (Overfill Prevention), Marine, MID (OIML R117-1) | For process complianceEndress+Hauser |
| Key Features | Data Management | HistoROM® | Stores calibration, configuration, diagnostics dataEndress+Hauser |
| Key Features | Diagnostics | Membrane Breakage Detection, Function Monitoring | From measuring cell to electronicsEndress+Hauser |
| Key Features | Vibration Resistance | 3–25 Hz: ±1.6 mm; 25–100 Hz: 4 g | All 3 planes (excl. high-temp Ex d[ia])Endress+Hauser |
