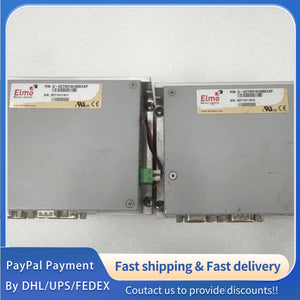

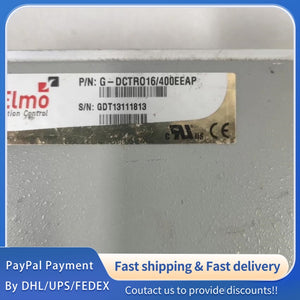

1 PCS USED ELMO Emerson Controller G-DCTR016/400EEAP #LYQ007
1 PCS USED ELMO Emerson Controller G-DCTR016/400EEAP #LYQ007
|
Item
|
Specification
|
|
Model Number
|
G-DCTR016/400EEAP
|
|
Product Name
|
ELMO Emerson High-Power Servo Controller
|
|
Product Series
|
ELMO G-Series, Digital Servo Controller for High-Voltage Industrial Applications
|
|
Brand
|
ELMO Emerson Automation
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Notes
|
|
Number of Control Axes
|
1
|
1
|
1
|
Axis
|
Single-axis independent control, multi-axis coordination via bus communication
|
|
Supply Voltage (AC)
|
200
|
380
|
480
|
V AC (3-Phase)
|
50/60Hz Frequency, Voltage tolerance ±10%, Stabilized power supply recommended
|
|
Rated Output Current
|
-
|
16
|
-
|
A RMS
|
Continuous output at 25℃; Derating required above 40℃ (15% per 10℃)
|
|
Peak Output Current
|
-
|
-
|
48
|
A RMS
|
Duration ≤ 3 seconds, duty cycle ≤ 15%
|
|
Control Bandwidth
|
-
|
2.5
|
5
|
kHz
|
Software-configurable, adaptive to different load characteristics
|
|
Encoder Input Resolution
|
1024
|
2500
|
256000
|
PPR
|
Supports incremental encoders (TTL/HTL) and absolute encoders (SSI/EtherCAT), 5V differential input
|
|
Control Precision
|
±0.001 mm (Mechanical), ±1 Pulse (Electrical)
|
Related to encoder resolution and mechanical transmission accuracy
|
|||
|
Power Consumption (No Load)
|
-
|
30
|
45
|
W
|
Measured at 380V AC supply voltage
|
|
Parameter
|
Specification
|
|

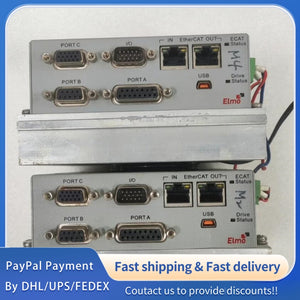

Communication Interfaces
|
1 x EtherCAT (RJ45), 1 x CANopen (DB9), 1 x RS-485 (Modbus RTU), 1 x USB 2.0 (Configuration & Debug Port)
|
|
Encoder Interfaces
|
1 x Incremental/Absolute Encoder Input (D-Sub 15), 5V DC power supply for encoder (max 200mA)
|
|
Digital Input/Output
|
8 Digital Inputs (Optically Isolated, 24V DC), 4 Digital Outputs (Transistor, 24V DC/1A), Configurable for limit, enable, alarm, and interlock signals
|
|
Analog Input/Output
|
2 Analog Inputs (0~10V / ±10V, 16-bit Resolution), 1 Analog Output (0~10V, 16-bit Resolution), Software-configurable range
|
|
Power Connector
|
16-Pin Terminal Block (3-Phase AC Input), 4mm² Wire Gauge Compatible
|
|
Signal Connectors
|
D-Sub 15 (Encoder), D-Sub 25 (I/O Signals), USB Type B (Configuration), Phoenix Terminal Block (Power)
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
