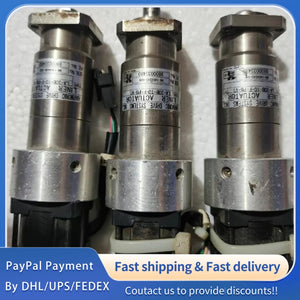

1 PCS used Harmonic Drive LA‑30B‑10‑F‑PB‑V1 Linear Actuator #LYQ007
1 PCS used Harmonic Drive LA‑30B‑10‑F‑PB‑V1 Linear Actuator #LYQ007
| Item | Specification |
|---|---|
| Model | LA‑30B‑10‑F‑PB‑V1 |
| Drive Type | DC Servo Motor (Open‑Collector) |
| Ball Screw | φ4, Lead: 0.5 mm |
| Resolution per Encoder Pulse | 0.0174 μm |
| Stroke | 10 mm |
| Rated Speed | 0.5 mm/s |
| Maximum Speed | 0.9 mm/s |
| Maximum Load Capacity | 49 N (5 kgf) |
| Motor Model | MDC02‑1C22 |
| Rated Voltage | DC 12 V |
| Rated Current | 0.5 A |
| Excitation | Permanent Magnet |
| Insulation Class | B |
| Dielectric Strength | AC 500 V, 1 min |
| Insulation Resistance | ≥ 100 MΩ (DC 500 V) |
| Construction | Totally Enclosed |
| Harmonic Drive Ratio | 1/80 |
| Ambient Temperature | 10°C to 25°C (Operating) |
| Lubrication | Grease |
| Storage Temperature | −20°C to +50°C |
| Mass | 320 g |
| Mounting | Flange‑mount (F) |
| Repeatability | ±0.1 μm / 1 mm strokeHarmonic Drive |
| Uni‑directional Positioning Accuracy | ≤ 2 μm / strokeHarmonic Drive |
| Backlash | ≤ 5 μm / 1 mm stroke |
| Allowable Side Load | ≤ 0.49 N·m (5 kgf·cm) |
| Allowable Rotary Torque | ≤ 0.49 N·m (5 kgf·cm) |
