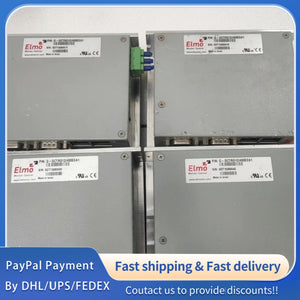

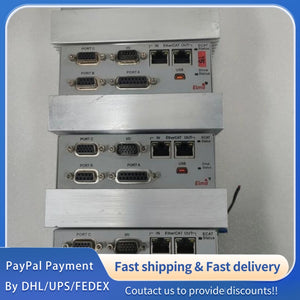

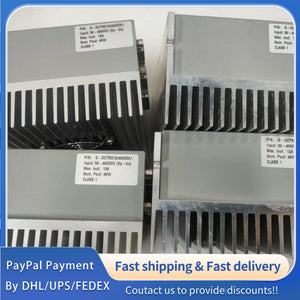

1 PCS used ELMO Emerson Controller G-DCTR012/400EEA1 #LYQ007
1 PCS used ELMO Emerson Controller G-DCTR012/400EEA1 #LYQ007
|
Item
|
Specification
|
|
Model Number
|
G-DCTR012/400EEA1
|
|
Product Name
|
ELMO Emerson High-Precision Servo Controller
|
|
Product Series
|
ELMO G-Series, Digital Servo Controller for Industrial Motion Control
|
|
Brand
|
ELMO Emerson Automation
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Notes
|
|
Number of Control Axes
|
1
|
1
|
1
|
Axis
|
Single-axis independent servo control, support for multi-axis synchronization via bus
|
|
Supply Voltage (DC)
|
18
|
24
|
48
|
V DC
|
Stabilized power supply required, ripple ≤ 0.5%
|
|
Rated Output Current
|
-
|
12
|
15
|
A RMS
|
Continuous output current; Peak current up to 40A (100ms)
|
|
Control Bandwidth
|
-
|
2
|
5
|
kHz
|
Configurable via software, high-bandwidth for dynamic response
|
|
Encoder Input Resolution
|
1024
|
2500
|
256000
|
PPR
|
Supports incremental/absolute encoders (TTL/HTL/SSI/EnDat), 5V differential input
|
|
Control Precision
|
±0.001 mm (Mechanical), ±1 Pulse (Electrical)
|
Depends on encoder resolution and mechanical transmission system
|
|||
|
Power Consumption (No Load)
|
-
|
15
|
20
|
W
|
At 24V DC supply voltage
|
|
Parameter
|
Specification
|
|
Communication Interfaces
|
1 x EtherCAT (RJ45), 1 x CANopen (DB9), 1 x RS-485 (Modbus RTU), 1 x USB 2.0 (Configuration Port)
|
|
Encoder Interfaces
|
1 x Incremental Encoder Input (TTL/HTL, 5V DC), 1 x Absolute Encoder Input (SSI/EnDat, Optional)
|
|
Digital Input/Output
|
8 Digital Inputs (Optically Isolated, 24V DC), 4 Digital Outputs (Transistor, 24V DC/1A), Configurable Functionality (Limit Switch/Enable Signal)
|
|
Analog Input/Output
|
2 Analog Inputs (0~10V/4~20mA, 16-bit Resolution), 1 Analog Output (0~10V, 16-bit Resolution)
|
|
Power Connector
|
7-Pin Terminal Block (Power Input), 4mm² Wire Gauge Compatible
|
|
Signal Connectors
|
D-Sub 15 (Encoder/Signals), RJ45 (EtherCAT), USB Type B (Configuration)
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
