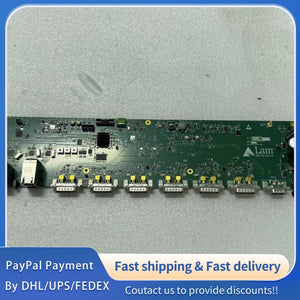

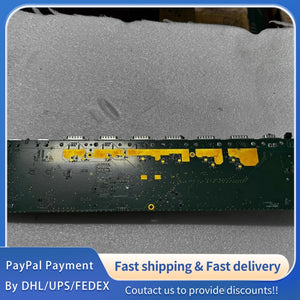

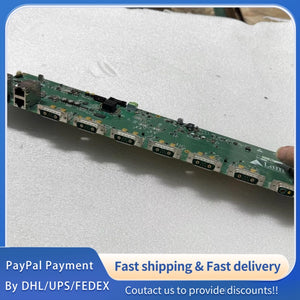

1 PCS used Lam Research Chip Mainboard 810-341810-101 REV:C #LYQ007
1 PCS used Lam Research Chip Mainboard 810-341810-101 REV:C #LYQ007
|
Parameter
|
Specification
|
Unit
|
Notes
|
|
Product Name
|
Lam Research Chip Mainboard
|
-
|
Genuine Lam Research Factory Part, 100% Authentic Chip Integrated Mainboard
|
|
Product Model
|
810-341810-101
|
-
|
Lam Factory Standard Model, Non-Replacement, Factory-Calibrated
|
|
Revision
|
REV:C
|
-
|
Official Verified Revision, Complies with Lam Factory Update Standard
|
|
Product Type
|
Industrial Grade Integrated Chip Mainboard
|
-
|
High Precision Chip Integration, Anti-Interference, Stable Industrial Operation
|
|
Origin
|
Lam Research Official Production Line
|
-
|
Strictly Complies with Lam Factory Precision & Safety Standards
|
|
Application
|
Lam Research Semiconductor Equipment, High-Precision Industrial Control System
|
-
|
Suitable for Lam High-End Chip-Controlled Industrial Equipment
|
|
Design Standard
|
Lam Research Factory Standard, ISO 9001, IEC 61010-1, IEC 60950-1
|
-
|
Meets Industrial Chip Mainboard Performance & Safety Requirements
|
|
Parameter
|
Min
|
Typ
|
Max
|
Unit
|
Notes
|
|
Operating Voltage
|
3.2
|
3.3
|
3.4
|
V DC
|
Stable Power Supply for Core Chip & Main Components
|
|
Max Working Current
|
3
|
4
|
5
|
A
|
Rated Working Current, Full Load Condition (Including Chip Operation)
|
|
Static Power Consumption
|
-
|
0.8
|
1.2
|
W
|
Standby Mode, Low Power Consumption, Energy-Saving Design
|
|
Insulation Resistance
|
≥100
|
-
|
-
|
MΩ
|
500V DC, High Insulation Performance, Protect Chip Safety
|
|
Dielectric Strength
|
500
|
-
|
1000
|
V AC
|
1 Minute, No Breakdown, No Arcing, Ensure Chip Stable Operation
|
|
Chip Operating Temperature
|
-40
|
25
|
85
|
℃
|
Industrial Grade Chip, Adapt to Harsh Environment
|
|
Chip Process Technology
|
-
|
14nm
|
-
|
-
|
High-Precision Process, Ensure Chip Computing & Control Performance
|
|
Parameter
|
Specification
|
Unit
|
Notes
|
|
PCB Layers
|
6 Layers
|
-
|
High-Density Wiring, Reduce Signal Interference, Protect Chip Signal Transmission
|
|
Copper Thickness
|
1
|
oz
|
Standard Copper Thickness, Good Conductivity, Stable Power Supply for Chip
|
|
Board Thickness
|
1.6
|
mm
|
High Mechanical Strength, Adapt to Industrial Equipment Vibration
|
|
Interface Type
|
Pin Header, Board-to-Board Connector, Signal Interface
|
-
|
Easy Installation, Stable Connection with Equipment & Chip Modules
|
|
Connector Type
|
Industrial Grade High-Precision Connector
|
-
|
Anti-Vibration, Anti-Loose, Anti-Interference, Long Service Life
|
|
Chip Socket Type
|
Surface Mount Technology (SMT)
|
-
|
High Integration, Stable Chip Fixation, Reduce Contact Failure
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
