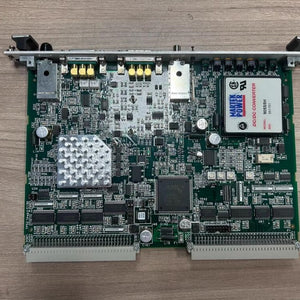

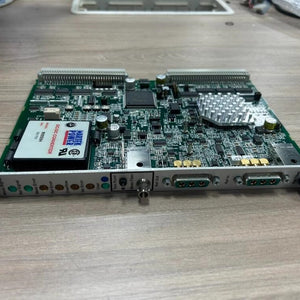

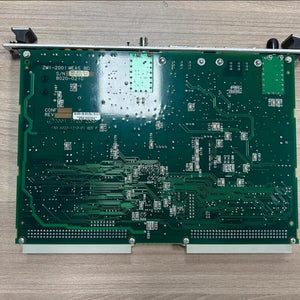

1 PCS used ZYGO ZMI-2001（P/N 8020-0210）board #LYQ007
1 PCS used ZYGO ZMI-2001（P/N 8020-0210）board #LYQ007
| Parameter Category | Specification | Details |
|---|---|---|
| Product Identification | Model | ZMI-2001 |
| Part Number | 8020-0210（-01-J） | |
| Manufacturer | Zygo Corporation | |
| Core Function | Type | Single-axis 6U VME displacement measuring interferometer measurement board |
| Axes per Board | 1 | |
| Electrical Specifications | Power Requirement | +5V ± 5% @ 3.5A；+12V ± 10% @ 0.1A（ZMI PC） |
| Position Data Format | 36-bit, two's complement | |
| Velocity Data Format | 32-bit, two's complement | |
| Time Data Format | 32-bit, two's complement | |
| Timing & Synchronization | Time Range | 107.4 seconds |
| Time Resolution | 25 ns | |
| System Synchronization | Clock in / Clock out | |
| Signal & Interface | Fiber Optic Signals | Reference and Measurement signals |
| P2 Data Rate | Up to 7.7 MHz (standard hardware interface) | |
| VME Compliance | VMEBus spec rev. C.1; 6U size; A16/A24 addressing; D16/D32 data transfer; D08 (0) interrupt acknowledge | |
| Performance Metrics | Max Slew Rate | Up to 2.1 m/s (with 2-pass interferometer, 20 MHz heterodyne split frequency) |
| Position Resolution (2-pass PMI) | λ/2048 (0.31 nm) | |
| Position Range | ±10.6 m (2-pass PMI) | |
| Error & Status | Error Status Monitoring | Reference (signal, PLL, DLL); Measure (Missing, Dropout, Glitch); Velocity (Board, User Defined); Acceleration Overflow (32/36-bit) |
| Physical Form Factor | Form Factor | 6U VME board (160mm length) |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
