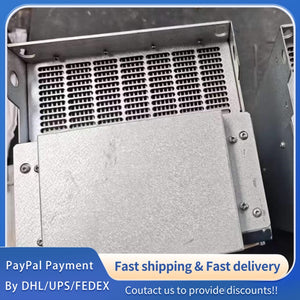

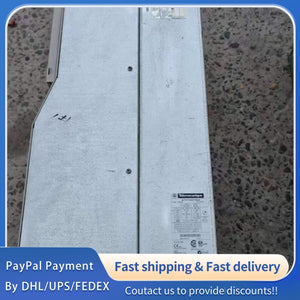

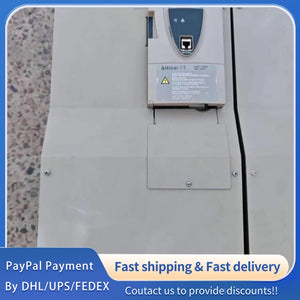

1 PCS USED Schneider Electric ATV71HD75N4 Variable Speed Drive #LYQ007
1 PCS USED Schneider Electric ATV71HD75N4 Variable Speed Drive #LYQ007
| Parameter | Specification |
|---|---|
| Product Model | ATV71HD75N4 |
| Product Series | Altivar 71 |
| Motor Power Rating | 75 kW (100 hp) at 380…480 V 3‑phase |
| Supply Voltage | 380…480 V (-15…+10 %), 3‑phase |
| Supply Frequency | 50…60 Hz (-5…+5 %) |
| Line Current | 137 A (480 V); 167 A (380 V) |
| Nominal Output Current | 124 A (460 V, 2.5 kHz); 160 A (380 V, 2.5 kHz) |
| Max Transient Current | 240 A (60 s); 264 A (2 s) |
| Output Frequency Range | 0.1…500 Hz |
| Switching Frequency | Nominal: 2.5 kHz; Adjustable: 1…16 kHz |
| Control Modes | ENA, FVC (with sensor), SFVC, V/F (2/5 points) |
| Overload Capacity | 150 % for 1 min; 220 % for 2 s |
| Braking Torque | 30 % (without resistor); ≤150 % (with resistor) |
| Speed Accuracy | ±0.01 % (closed‑loop); ±10 % slip (open‑loop) |
| Torque Accuracy | ±5 % (closed‑loop); ±15 % (open‑loop) |
| Analog Inputs | 2 (AI1‑/AI1+: ±10 V; AI2: 0…20 mA / 0…10 V) |
| Analog Outputs | 1 (AO1: 0…20 mA / 0…10 V) |
| Discrete Inputs | 7 (LI1–LI6, PWR safety input) |
| Discrete Outputs | 2 (relay: R1 NO/NC, R2 NO) |
| Communication | Modbus, CANopen; optional: Profibus DP, Ethernet/IP, etc. |
| Protection Features | Overcurrent, overvoltage, undervoltage, phase loss, thermal protection, STO |
| Dimensions (H×W×D) | 630 × 320 × 290 mm |
| Weight | 44 kg |
| IP Rating | IP20 |
| Operating Temp | -10…+50 °C (no derating) |
| Storage Temp | -25…+70 °C |
| Altitude | ≤1000 m (no derating); 1000–3000 m (1 % derating per 100 m) |
| Humidity | 5…95 % RH (non‑condensing) |
| EMC Filter | Integrated |
| Certifications | CE, UL, CSA, C‑Tick, GOST, NOM 117 |
| Warranty | 18 months |
