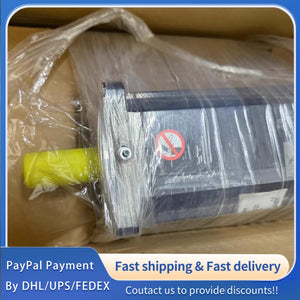

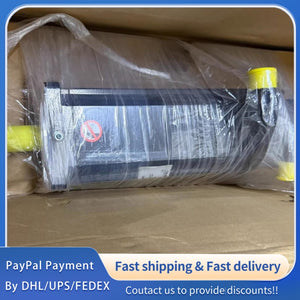

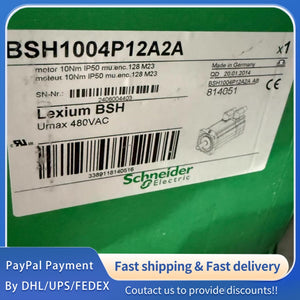

1 PCS new Schneider Electric BSH1004P12A2A Servo Motor #LYQ007
1 PCS new Schneider Electric BSH1004P12A2A Servo Motor #LYQ007
| Parameter | Value |
|---|---|
| Product Type | AC Servo Motor (Lexium BSH Series) |
| Part Number | BSH1004P12A2A |
| Flange Size | IEC 100 mm |
| Continuous Stall Torque | 9.31 N·m |
| Peak Stall Torque | 37.9 N·m (LXM32.D30N4, 10 A, 400 V, 3‑phase) |
| Rated Speed | 1500 rpm |
| Max Mechanical Speed | 6000 rpm |
| Nominal Output Power | 2600 W |
| Shaft Type | Keyed shaft |
| Holding Brake | Without brake |
| Protection Rating | IP50 |
| Encoder Type | Multiturn SinCos Hiperface (absolute) |
| Encoder Resolution | 131072 points/turn × 4096 turns |
| Rotor Inertia | 2.31 kg·cm² |
| Torque Constant (Kt) | 1.21 N·m/A (at 120 °C) |
| Back EMF Constant (Ke) | 77 V/krpm (at 120 °C) |
| Number of Poles | 8 |
| Stator Resistance (Rs) | 2.4 Ω (at 20 °C) |
| Stator Inductance (Ls) | 12.7 mH (at 20 °C) |
| Electrical Time Constant | 5.29 ms (at 20 °C) |
| Max Radial Force (Fr) | 990 N (at 1000 rpm) |
| Max Axial Force (Fa) | 0.2 × Fr |
| Cooling Method | Natural convection |
| Electrical Connection | Rotatable right‑angled M23 connectors |
| Weight | Approx. 6.5 kg |
| Compliance | RoHS, REACH |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
