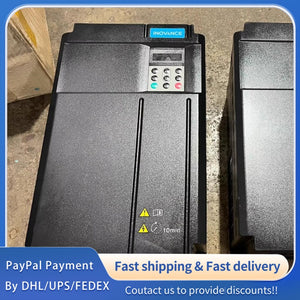

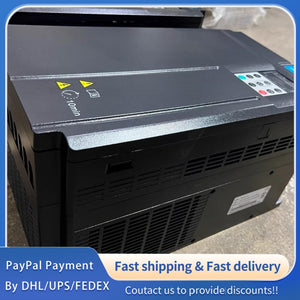

1 PCS USED Inovance MD500T30G AC Drive#LYQ007
1 PCS USED Inovance MD500T30G AC Drive#LYQ007
| Parameter | Value |
|---|---|

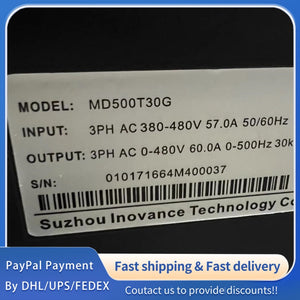

| Model | MD500T30G |
| Voltage Class | Three‑phase 380–480 Vac |
| Input Voltage | 380–480 Vac, −15% to +10% |
| Input Frequency | 50/60 Hz ±5% |
| Rated Input Current | 59 A |
| Applicable Motor Power | 30 kW |
| Rated Output Current | 60 A |
| Max. Output Voltage | Three‑phase 380–480 Vac (proportional to input) |
| Max. Output Frequency | 500 Hz |
| Default Carrier Frequency | 4 kHz |
| Overload Capacity | 150% for 60 s |
| Control Modes | V/F, SVC (open‑loop vector), FVC (closed‑loop vector) |
| Starting Torque | 150% at 0.25 Hz (SVC); 180% at 0 Hz (FVC) |
| Built‑in DC Reactor | Yes (standard for ≥30 kW) |
| Built‑in Braking Unit | Yes |
| Recommended Braking Resistor | Power: 15 kW; Resistance: 16 Ω |
| Enclosure | IP20 |
| Frame Size | T6 |
| Dimensions (W×H×D) | 380 × 400 × 250 mm |
| Weight | 17.5 kg |
| Ambient Temperature | −10°C to +50°C (derating above 40°C) |
| Certifications | CE, UL, cUL, RoHS |
| Communication Options | Modbus‑RTU, PROFIBUS‑DP, CANopen, CANlink, PROFINET (optional cards) |
