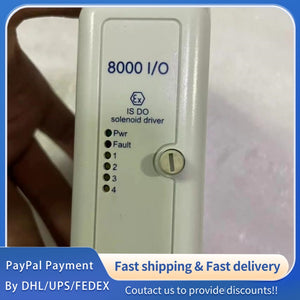

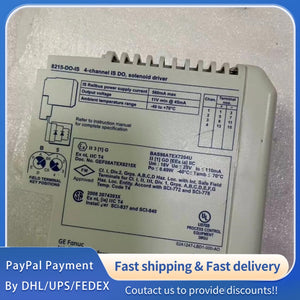

1 PCS used GE 8215-DO-IS Module #LYQ007
1 PCS used GE 8215-DO-IS Module #LYQ007
| Parameter | Value / Description |
|---|---|
| Model | 8215‑DO‑IS |
| Manufacturer | GE (MTL) |
| Type | 4‑Channel Intrinsically Safe Discrete Output Module |
| Channels | 4 single‑ended output channels |
| Output Type | Solenoid driver, intrinsically safe |
| Min Output Voltage | Open circuit: 22 V; 45 mA load: 11 V |
| Max Output Voltage | 25 V |
| Current Limit (per channel) | 45 mA (min.) |
| Output Ripple | < 0.5% of output (pk‑pk) |
| Line Fault Detection | Short‑circuit: < 15 Ω; Open‑circuit: > 13 kΩ |
| Isolation | Channel‑to‑Railbus: 60 V AC; No channel‑to‑channel isolation |
| Configurable States | Initial state: High / Low; Fail‑safe: High / Low / Last value |
| Operation Modes | Static / Dynamic; Discrete / Momentary pulse / Continuous pulse |
| Pulse Width | 2 ms to 130 s |
| Duty Cycle | 0.01% to 99.99% (2 ms to 130 s) |
| Response Time | Railbus command → output change: 10 ms (typ.) |
| Safety Rating | [EEx ia] IIC |
| Safety Parameters | V₀ = 25 V, I₀ = 110 mA, P₀ = 0.69 W; Cₐ ≤ 0.19 μF, Lₐ ≤ 3.15 mH |
| Power | IS Railbus (12 V): 560 mA (max.); Dissipation: 3.7 W (max.) |
| Mechanical | Key code: B5; Width: 42 mm; Weight: 220 g |
| Field Terminals | 8621‑FT‑IS (standard), 8622‑FT‑IS (loop disconnect) |
