1 PCS used HORIBA CU-2130 Mass Flow Controller Unit #LYQ007
1 PCS used HORIBA CU-2130 Mass Flow Controller Unit #LYQ007
| Item | Specification |
|---|---|
| Model | CU-2130 |
| Product Type | Compact bench-top control unit for external mass flow controllers (MFC/MFM) |
| Compatible MFC/MFM | SEC(F)-E40, SEC(F)-E50, SEC(F)-N112MGR, SEC(F)-N122MGR, SEC(F)-N112MGM, SEC(F)-N122MGM, SEC(F)-Z512MGX, SEC(F)-Z522MGX, XF series |

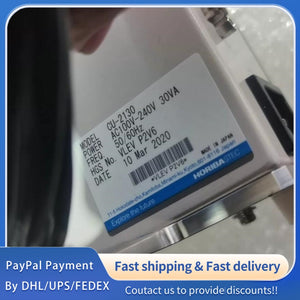

| Power Supply | AC 100–240 V (90–250 V tolerance), 50/60 Hz |
| Power Consumption | Max. 30 VA |

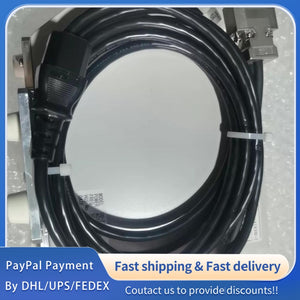

| Power Cable | 3 m attached (AC-125 V, 7 A) |
| Operating Ambient Temp | 5 °C to 45 °C |
| Operating Ambient Humidity | 30% to 85% RH (non-condensing) |

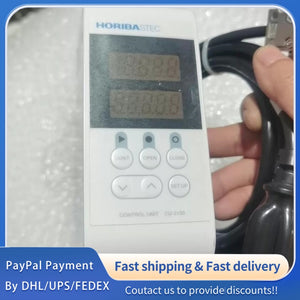

| Display | 4½-digit red LED, 5-digit green LED; SET/OUT switchable |
| Display Accuracy | ±0.1% F.S. ±1 digit |
| Flow Setting Signal | 0–5 V DC; accuracy ±10 mV of set value |
| Monitor Outputs | Flow setting monitor, flow output monitor, totalizer monitor; max. 1 mA each |
| Totalizer Function | Range: 0 mL–99999 m³ / 0 mg–99999 kg; accuracy ±0.1% F.S. ±1 digit |
| Alarm Output | Upper/lower limit, 2-point open-collector; max. DC 30 V, 50 mA |
| External I/O | 2 sets of interlock contacts (A/B); max. AC 250 V 1.5 A / DC 30 V 1.5 A; solenoid valve contact: max. AC 250 V 5 A / DC 30 V 5 A |
| Connectors | EXT: 17LE-23150-27(D41)-FA (M3 hex nut); SV: SRCN2A13-5P; LAN: RJ-45; terminal block: F2362B |
| Piping Connection | 1/4” Swagelok equivalent (back panel) |
| Internal Piping Material | SUS-316 |
| Dimensions (W×D×H) | Approx. 106 × 200 × 205 mm (with handle & cable) |
| Features | Panel key operation, SET/OUT display, alarm function, external I/O, replaceable external MFC/MFM |
| Applications | Gas/liquid flow measurement and control in research, testing, semiconductor, and process environments |
