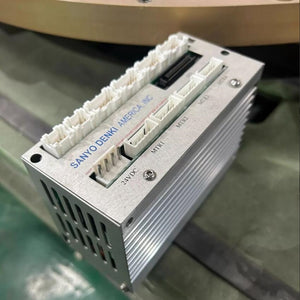

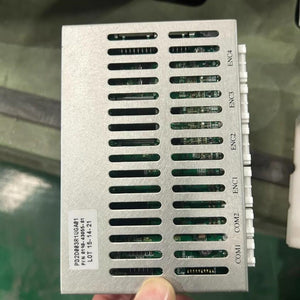

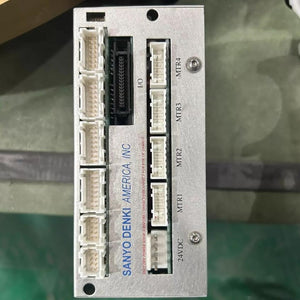

1 PCS used SANYO DENKI P32D003R1UGA01 Controller #LYQ007
1 PCS used SANYO DENKI P32D003R1UGA01 Controller #LYQ007
| Item | Specifications |
|---|---|
| Model Number | P32D003R1UGA01 |
| Product Line | SANMOTION R Series (Advanced) |
| Input Power Supply | AC 200V (180–230V), 3-phase, 50/60 Hz |
| Output Capacity | 3.0 kW |
| Continuous Output Current | 12.5 A (rms) |
| Peak Output Current | 37.5 A (rms), 5-second duration |
| Control Modes | Position, Speed, Torque |
| Command Interface | Pulse & Direction, CW/CCW, Analog Voltage |
| Communication | EtherCAT (100 Mbps, full-duplex) |
| Encoder Feedback | 20-bit incremental (1,048,576 pulses/rev) |
| Digital Inputs | 8 points (24 VDC, sink/source selectable) |
| Digital Outputs | 4 points (24 VDC, 50 mA max, sink) |
| Analog Inputs | 2 points (±10V, 12-bit resolution) |
| Analog Outputs | 1 point (±10V, 12-bit resolution) |
| Protective Functions | Overcurrent, Overvoltage, Undervoltage, Overtemperature, Overload, Regeneration Error |
| Cooling Method | Forced air cooling |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Storage Temperature | -20°C to +65°C (-4°F to 149°F) |
| Humidity | 90% RH or less (non-condensing) |
| Weight | Approx. 2.5 kg |
| Dimensions (W x H x D) | 120 mm x 144 mm x 250 mm |
| Standards | UL61800-5-1, EN61800-5-1, EN61000-6-2, EN61000-6-4 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
