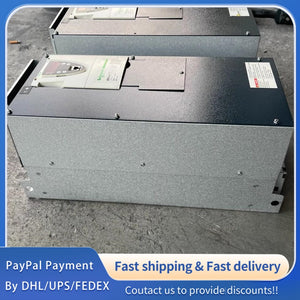

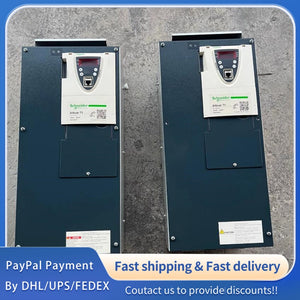

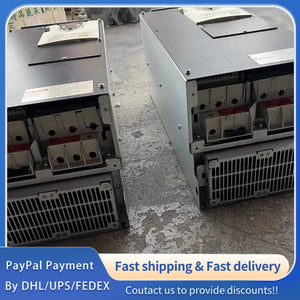

1 PCS USED Schneider Electric ATV71HD30N4Z (30kW) #LYQ007
1 PCS USED Schneider Electric ATV71HD30N4Z (30kW) #LYQ007
| Parameter | Value |
|---|---|
| Product Model | ATV71HD30N4Z |
| Product Series | Altivar 71 |
| Product Type | Variable Speed Drive (AC Inverter) |
| Motor Power | 30 kW (40 hp) at 380–480 V 3-phase |
| Input Voltage | 380–480 V AC, 3-phase, -15%/+10% |
| Input Frequency | 50–60 Hz, ±5% |
| Line Current (Input) | 56 A @ 480 V; 66 A @ 380 V |
| Apparent Power | 43.4 kVA @ 380 V 3-phase |
| Nominal Output Current | 52 A @ 460 V, 4 kHz; 66 A @ 380 V, 4 kHz |
| Max Transient Current | 99 A for 60 s; 109 A for 2 s |
| Output Frequency Range | 0.1–599 Hz |
| Nominal Switching Frequency | 4 kHz |
| Switching Frequency | 1–16 kHz adjustable (4–16 kHz with derating) |
| Control Modes | SFVC (Sensorless Flux Vector), FVC (Flux Vector with encoder), V/F (2/5 points), ENA (Energy Adaptation) |
| Overload Capacity | 170% nominal torque for 60 s; 220% for 2 s |
| Braking Torque | 30% (without resistor); ≤150% (with resistor) |
| EMC Filter | Integrated |
| Protection Rating | IP20 (upper part); IP21 (with cover) |
| Dimensions (W×H×D) | 240 × 550 × 266 mm |
| Weight | 37 kg |
| Operating Temperature | -10°C to +50°C (no derating) |
| Storage Temperature | -25°C to +70°C |
| Operating Altitude | ≤1000 m (no derating); 1000–3000 m (1% derating per 100 m) |
| Relative Humidity | 5–95% (non-condensing) |
| Analog Inputs | 2 (AI1: ±10 V; AI2: 0–20 mA / 0–10 V configurable) |
| Analog Outputs | 1 (0–20 mA / 0–10 V configurable) |
| Digital Inputs | 7 (LI1–LI6, PWR safety input) |
| Relay Outputs | 2 (R1: NO/NC; R2: NO) |
| Communication | Built-in Modbus (RS485), CANopen (optional) |
| Certifications | CE, UL, CSA, C-Tick, NOM 117 |
| Motor Cable Length | ≤200 m (unshielded); ≤100 m (shielded) |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
