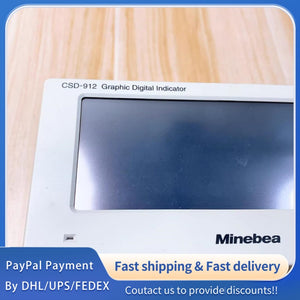

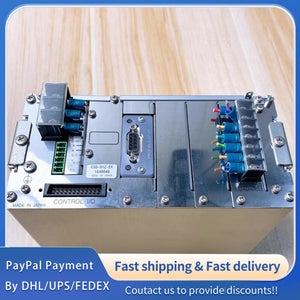

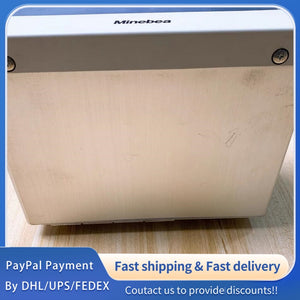

1 PCS used Minebea CSD-912B Graphic Digital Indicator #LYQ007
1 PCS used Minebea CSD-912B Graphic Digital Indicator #LYQ007
| Item | Specification |
|---|---|
| Model | CSD-912B |
| Display | 6.2-inch TFT color LCD touch panel, 640×240 dots |
| A/D Conversion | 24-bit internal resolution; sampling speed: 200/s (selectable: 10/20/50/100/1000/s) |
| Input Range | -3.1 mV/V to +3.1 mV/V |
| Zero Adjustment | ±2.5 mV/V |
| Nonlinearity | 0.01% F.S. |
| Temperature Coefficient | Zero: ±0.1 μV/°C; Sensitivity: ±0.0008% F.S./°C |
| Bridge Excitation | 12 VDC ±0.3 V (140 mA max); 3/6 VDC optional |
| Input Sensitivity | ≥0.3 μV/d (d = minimum scale) |
| Analog Filter | 4 Hz (selectable: 2/6/8/10/100 Hz) |
| Display Range | -999,999 to +999,999 |
| Display Update | 4/s (selectable: 20/s) |
| Decimal Point | Selectable: none, 10¹, 10², 10³, 10⁴ |
| Units | g, kg, t, lb, N, kN (selectable) |
| Memory | 100 brands/recipes; accumulation: 0–9,999,999,999 |
| Communication | RS-485 (standard); RS-232C, CC-Link, PROFIBUS optional |
| Power Supply | AC 100–240 V (85–264 V range), 50/60 Hz |
| Power Consumption | ~20 VA (no options); ≤30 VA (with options) |
| Operating Environment | 0–40 °C, ≤85% RH (non-condensing) |
| Protection | IP65 (front panel with gasket) |
| Dimensions | 192 (W) × 96 (H) × 132 (D) mm (excl. protrusions) |
| Weight | ~1.6 kg (no options) |
| Certifications | CE, JIS B 7611-2:2015 (Class H) |
