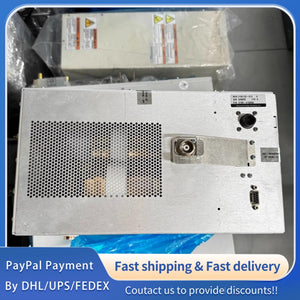

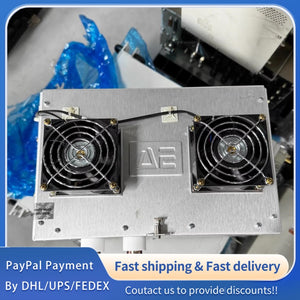

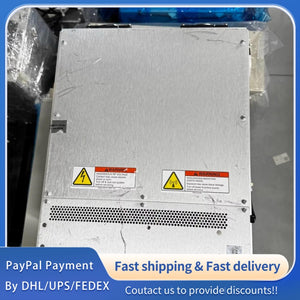

1 PCS used AE RF Power Matcher 3155132-013 #LYQ007
1 PCS used AE RF Power Matcher 3155132-013 #LYQ007
|
Parameter
|
Specification
|
Unit
|
Notes
|
|
Brand
|
AE (Advanced Energy)
|
-
|
Genuine, Original AE Factory Production, 100% Authentic, RF Power Matcher Series[1]
|
|
Product Model
|
3155132-013
|
-
|
Original AE Model, Factory Calibrated, No Modification, Standard RF Matching Design
|
|
Product Name
|
RF Power Matcher
|
-
|
Industrial Grade, High Precision, RF Power Matching for Plasma Processing[2]
|
|
Application
|
Plasma Etching, CVD, PVD, Semiconductor Manufacturing, Industrial RF Systems
|
-
|
Adapt to AE RF Power Supply Systems, Ensure Stable RF Power Transmission[3]
|
|
Origin
|
AE Original Factory (USA)
|
-
|
Strict Factory Quality Control, Meet AE Global RF Matcher Standards and Technical Requirements
|
|
Matcher Type
|
Automatic RF Power Matcher
|
-
|
Auto-Tuning, High Efficiency, Low Insertion Loss, Suitable for Continuous Industrial Operation[4]
|
|
Parameter
|
Min
|
Typ
|
Max
|
Unit
|
Notes
|
|
Operating Frequency Range
|
13.56
|
13.56
|
13.56
|
MHz
|
Standard Industrial RF Frequency, Factory Tuned[5]
|
|
Input Power Range
|
0
|
1000
|
1500
|
W
|
Continuous Wave (CW), Compatible with AE RF Power Supplies[6]
|
|
Input Impedance
|
50
|
50
|
50
|
Ω
|
Standard RF Input Impedance, Low Reflection[7]
|
|
Output Impedance Matching Range
|
10
|
50
|
100
|
Ω
|
Auto-Matching, Cover Common Load Impedance[8]
|
|
VSWR (Voltage Standing Wave Ratio)
|
1.0
|
1.1
|
1.2
|
-
|
Low Reflection, Ensure Stable RF Power Transmission[9]
|
|
Matching Speed
|
≤50
|
30
|
-
|
ms
|
Fast Auto-Matching, Adapt to Load Changes Quickly[10]
|
|
Parameter
|
Min
|
Typ
|
Max
|
Unit
|
Notes
|
|
Control Mode
|
Automatic Matching, Manual Override, Remote Control
|
-
|
Flexible Control, Adapt to Different Operation Scenarios[11]
|
||
|
Communication Protocol
|
RS485, Ethernet, Analog Control (0-10V)
|
-
|
Multi-Protocol Compatible, Easy Integration with AE Control Systems[12]
|
||
|
Communication Baud Rate
|
9600
|
19200
|
115200
|
bps
|
Adjustable, Stable Data Transmission for Control Signals[13]
|
|
Digital Input/Output
|
8/4
|
8/4
|
8/4
|
Channels
|
8 Inputs/4 Outputs, Compatible with Industrial Sensors[14]
|
