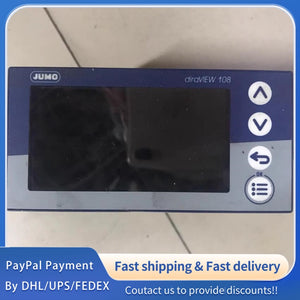

1 PCS used JUMO diraVIEW 108 (701513/8-0000-23/000) Speed Display #LYQ007
1 PCS used JUMO diraVIEW 108 (701513/8-0000-23/000) Speed Display #LYQ007
| Parameter | Specification |
|---|---|
| Model | diraVIEW 108 (108Q), 701513/8-0000-23/000 |
| Type | Digital panel indicator (speed display) |
| Dimensions | 96 mm × 48 mm (panel cut‑out: 92+0.8 mm × 45+0.6 mm) |
| Display | Two 18‑segment LCD (4‑digit, green); pixel matrix LCD (2 rows × 8 fields) |
| Digit height | Upper: 16.5 mm; Lower: 9 mm |
| Supply voltage | AC 110–240 V (+10/–15%), 48–63 Hz; or AC/DC 20–30 V, 48–63 Hz |
| Power consumption | Max. 5.8 W (AC 110–240 V); Max. 5.7 W (AC/DC 20–30 V) |
| Input type | 1 analog input (configurable for speed signals: 0–10 V, 4–20 mA, etc.) |
| Input accuracy | ≤ 0.1% of full scale |
| Sampling rate | 150 ms |
| Digital filter | 2nd‑order, adjustable 0–100.0 s |
| Outputs | 2 relay outputs (N/O, 3 A @ 230 V AC / 30 V DC); 1 DI, 1 DI/DO; logic outputs optional |
| Protection | IP65 (front panel) |
| Weight | Max. 160 g |
| Operating temp | –10 to +55 °C; storage: –25 to +70 °C |
| Certifications | UL 61010‑1, CSA C22.2 No. 61010‑1, EN 61010‑1 |
| Functions | Min/max memory, hold, taring, limit monitoring, timer, service counter |
