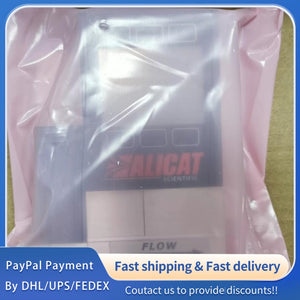

1 PCS new ALICAT KM3100-21S-1-54-0-10SCCM flow meter #LYQ007
1 PCS new ALICAT KM3100-21S-1-54-0-10SCCM flow meter #LYQ007
| Parameter Category | Parameter Name | Factory Spec |
|---|---|---|

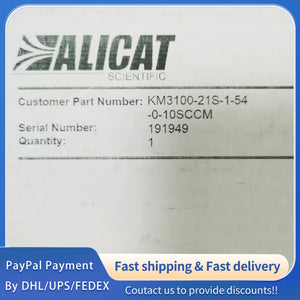

| Model Identification | Full Model Number | KM3100-21S-1-54-0-10SCCM |
| Product Line | CODA™ KM-Series Coriolis Mass Flow Meter | |
| Primary Configuration | 21S (Wetted Material: 316L SS + Viton), 10 SCCM Full Scale | |
| Flow Performance | Full Scale Flow (FS) | 10 SCCM (Standard Cubic Centimeters per Minute) |
| Measurement Range | 0.01% to 100% of FS (0.001–10 SCCM) | |
| Flow Accuracy (Gas) | ±0.5% of Reading or ±0.05% of FS, whichever is greater | |
| Flow Accuracy (Liquid) | ±0.2% of Reading or ±0.05% of FS, whichever is greater | |
| Repeatability | ±0.05% of Reading or ±0.025% of FS, whichever is greater | |
| Zero Stability | ±0.05% of FS | |
| Typical Response Time | <100 ms | |
| Operating Conditions | Fluid Temperature Range | –35 °C to +70 °C |
| Ambient Temperature Range | 0 °C to +60 °C | |
| Operating Pressure Range | 11.5 to 160 PSIA | |
| Proof Pressure | 200 PSIA (for 40 g/h / 10 SCCM class) | |
| Maximum Differential Pressure | 75 PSID (damage risk above this) | |
| Operating Humidity | 0–95% RH, non-condensing | |
| Wetted Materials | Primary Wetted Material | 316L Stainless Steel (21S Option) |
| Seals | Viton™ | |
| Leak Rate (External) | ≤1×10⁻⁹ Atm·cc/s He (standard; HLC option available) | |
| Process Connections | Port Type | M5 Female (10-32 UNF compatible) |
| Pressure Drop @ FS | 1.0 PSID (typical, air to atmosphere) | |
| Electrical & Communication | Power Supply | 9–24 VDC (40 mA typical); 12–24 VDC (80 mA if 4–20 mA/0–10 VDC) |
| Analog Outputs | Configurable: 0–5 VDC, 1–5 VDC, 0–10 VDC, 4–20 mA | |
| Analog Accuracy | ±0.1% of FS additional uncertainty | |
| Analog Update Rate | 1 kHz (1000 Hz) | |
| Digital Interfaces | RS-232/RS485 (Modbus RTU), USB-C; Optional: EtherCAT, PROFINET | |
| Digital Update Rate | 40 Hz @ 19200 baud | |
| Electrical Connector | DB-15 Male (default); Optional: 8-pin M12, DB-9 | |
| Display & Physical | Display | Monochrome LCD (backlit), simultaneous multi-variate readout |
| Display Update Rate | 10 Hz | |
| Dimensions (L×W×H) | 3.897″ × 2.375″ × 1.050″ (98.98 mm × 60.33 mm × 26.67 mm) | |
| Mounting | 2× 8-32 UNC tapped holes, 0.175″ (4.45 mm) depth | |
| Ingress Protection (IP) | IP40 (standard) | |

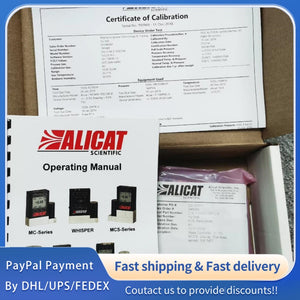

| Calibration & Compliance | Calibration | NIST-traceable, factory-calibrated to nitrogen (gas) / water (liquid) |
| Reference Conditions | STP: 25 °C, 1 ATM (user-configurable); NTP: 0 °C, 1 ATM (optional) | |
| Gas Select™ | 98 pre-loaded gases; Composer™ for 20 custom gas mixes | |
| Warranty | Limited Lifetime Warranty (Alicat standard) |
