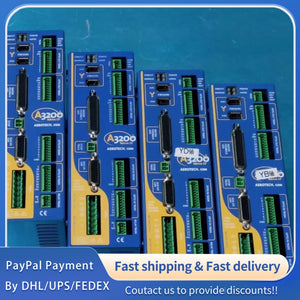

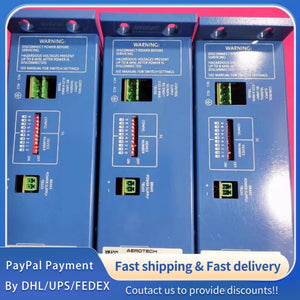

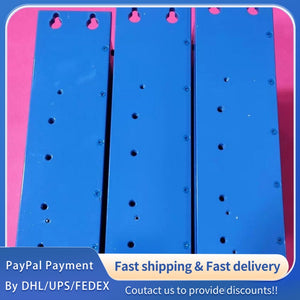

1 PCS USED AEROTECH A3200 NdriveHPe20-IO Drive #LYQ007
1 PCS USED AEROTECH A3200 NdriveHPe20-IO Drive #LYQ007
| Parameter | Specification |
|---|---|
| Model | NdriveHPe20-IO |
| Motor Type | Brushless, DC Brush, Stepper |
| Motor Supply Input | Single-Phase 7–240 VAC; 50/60 Hz |
| Control Supply Input | 85–240 VAC; 50/60 Hz |
| Bus Voltage | 10–320 VDC |
| Peak Output Current (1 sec) | 20 Apk |
| Continuous Output Current | 10 Apk |
| Digital Inputs (Base) | 6 Optically-Isolated (2 High Speed) |
| Digital Outputs (Base) | 4 Optically-Isolated |
| Analog Input (Base) | 1 × 16-bit Differential; ±10 V |
| Analog Output (Base) | 1 × 16-bit Single-Ended; ±10 V |
| Expansion I/O (-IO Board) | 16 DI / 16 DO Opto-Isolated; 3 AI (±10 V, 16-bit Differential); 3 AO (±10 V, 16-bit) |
| Primary Encoder Input | 500 kHz Amplified Sine Wave; 40 MHz TTL Square Wave |
| Secondary Encoder Input | 32 MHz Square Wave |
| Encoder Multiplication | Up to ×65536 (MXH) |
| Absolute Encoder Support | Renishaw Resolute BiSS; EnDat 2.1; EnDat 2.2 |
| Current Loop Update Rate | 20 kHz |
| Servo Loop Update Rate | 8 kHz |
| PWM Switching Frequency | 20 kHz |
| Minimum Load Inductance | 0.1 mH @ 160 VDC; 1.0 mH @ 320 VDC |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -30 to 85 °C |
| Weight | 2.36 kg (5.2 lb) |
| Communications | FireWire (400 Mbps) |
| Safety & Compliance | CE, NRTL, RoHS 3 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
