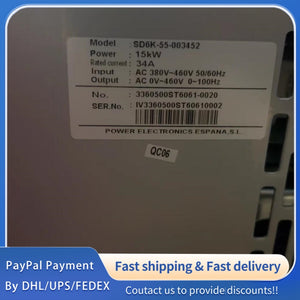

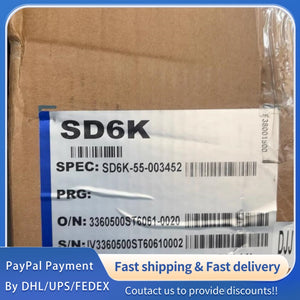

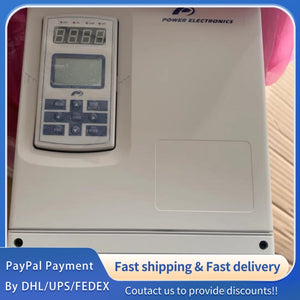

1 PCS new SD6K-55-003452 Variable Speed Drive #LYQ007
1 PCS new SD6K-55-003452 Variable Speed Drive #LYQ007
| Parameter Category | Parameter Name | Value | Unit | Remarks |
|---|---|---|---|---|
| Model Identification | Model Number | SD6K-55-003452 | – | 400V-class high-performance series |
| Model Identification | Product Series | SD6K-55 | – | High-performance industrial VSD |
| Electrical Input (3-Phase) | Rated Voltage | 3×380–460 | V AC | 50/60 Hz nominal |
| Electrical Input (3-Phase) | Input Frequency | 50/60 | Hz | ±5% tolerance |
| Electrical Input (3-Phase) | Rated Input Current | 11.0 | A | At 400V, full load |
| Electrical Output | Rated Output Voltage | 0–Input Voltage | V AC | 3-phase, PWM output |
| Electrical Output | Rated Output Current | 11.0 | A | Continuous (Iₙ) |
| Electrical Output | Overload Capacity | 150% for 60s; 200% for 3s | – | Per 10-minute cycle |
| Electrical Output | Max Output Frequency | 500 | Hz | Programmable |
| Power Rating | Rated Power (kVA) | 7.5 | kVA | At 400V, 11A, cosφ=0.9 |
| Power Rating | Recommended Motor Power | 5.5 | kW | 400V 3-phase induction motor |
| Control Performance | Control Modes | V/f, SLVC, FVC, Torque Control | – | SLVC: Sensorless Vector Control; FVC: Closed-Loop Vector Control |
| Control Performance | Starting Torque | 180% at 0.5 Hz (V/f); 200% at 0.2 Hz (SLVC) | % | At rated current |
| Control Performance | Speed Regulation Accuracy | ±0.5% (SLVC); ±0.01% (FVC) | – | Of set speed |
| Control Performance | Speed Range | 1:100 (SLVC); 1:1000 (FVC) | – | Stable operation |
| Switching Characteristics | Carrier Frequency | 1.1–8.0 | kHz | Programmable, user-selectable |
| Protection Features | Standard Protection | Overcurrent, Overvoltage, Undervoltage, Overheating, Motor Overload, Short Circuit, Earth Fault, IGBT Protection | – | Comprehensive self-diagnosis |
| Environmental Ratings | Operating Temperature | -10 to +40 | °C | Derate 1%/°C above 40°C up to 50°C |
| Environmental Ratings | Storage Temperature | -40 to +70 | °C | Without condensation |
| Environmental Ratings | Humidity | 5–95 | % RH | Non-condensing, no dust |
| Environmental Ratings | Altitude | ≤1000 | m | Derate 1%/100m above 1000m |
| Mechanical Specifications | Cooling Method | Forced Air Cooling | – | Independent air channel design |
| Mechanical Specifications | Protection Class | IP20 | – | Chassis mount, front panel protection |
| Mechanical Specifications | Enclosure Type | Open Chassis | – | For cabinet installation |
| Communication Interfaces | Standard Interfaces | RS485 (Modbus RTU) | – | Optional fieldbus cards available |
| Safety | Safety Standard | IEC/EN 61800-5-1, IEC/EN 61800-3 | – | EMC and safety compliance |
| Cable Requirements | Output Cable Temperature | ≥90 | °C | Minimum rated insulation temperature |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
