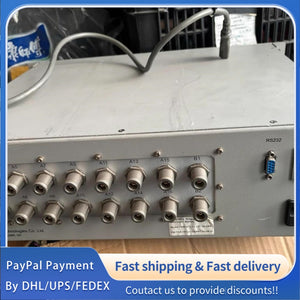

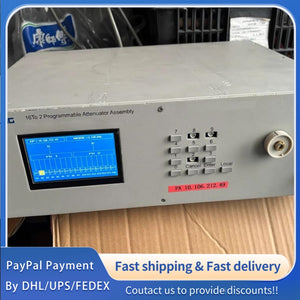

1 PCS used TUPHYOUNG TAS16To2-127-IN-DES Programmable Attenuator #LYQ007
1 PCS used TUPHYOUNG TAS16To2-127-IN-DES Programmable Attenuator #LYQ007
|
Item
|
Specification
|
|
Model Number
|
TAS16To2-127-IN-DES
|
|
Product Name
|
TUPHYOUNG TAS16To2-127-IN-DES Programmable Attenuator, Industrial Grade Precision RF Attenuator
|
|
Brand & Manufacturer
|
TUPHYOUNG Electronics, Industrial-Grade Electronic Components Manufacturer
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Notes
|
|
Attenuation Range
|
0
|
31.5
|
63
|
dB
|
Programmable continuous adjustment within the range, high linearity
|
|
Attenuation Step
|
0.1
|
0.5
|
1
|
dB
|
Software-configurable step size, minimum step up to 0.1dB for precision adjustment
|
|
Frequency Range
|
10
|
500
|
2000
|
MHz
|
Covers HF to UHF bands, stable attenuation performance across the entire frequency range
|
|
Insertion Loss
|
-
|
0.3
|
0.8
|
dB
|
At 1GHz, 0dB attenuation; Low insertion loss to reduce signal loss
|
|
Attenuation Accuracy
|
-
|
±0.1
|
±0.3
|
dB
|
At 25℃, 1GHz, attenuation ≤30dB; High accuracy for critical signal conditioning
|
|
Power Handling Capacity (Average)
|
-
|
1
|
5
|
W
|
At 25℃, continuous operation; Derated at high temperature
|
|
Power Handling Capacity (Peak)
|
-
|
10
|
20
|
W
|
Pulse width ≤10μs, duty cycle ≤1%
|
|
VSWR (Voltage Standing Wave Ratio)
|
-
|
1.2:1
|
1.5:1
|
-
|
At 1GHz, 0dB attenuation; Low VSWR to ensure signal integrity
|
|
Impedance
|
50
|
50
|
50
|
Ω
|
Standard 50Ω impedance, compatible with most RF systems
|
