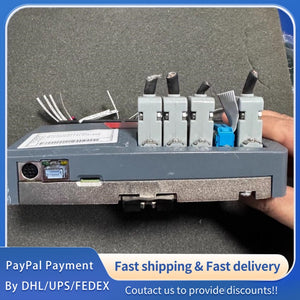

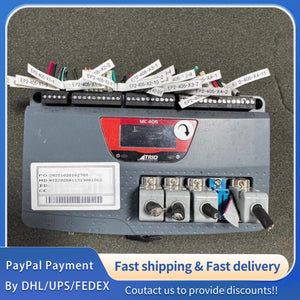

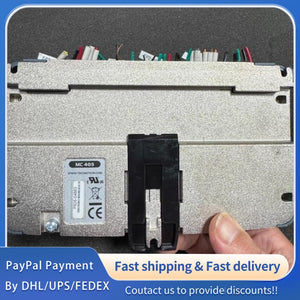

1 PCS used TRIO MC405 Motion Controller #LYQ007
1 PCS used TRIO MC405 Motion Controller #LYQ007
1 PCS used TRIO MC405 Motion Controller #LYQ007
1. General Specifications (Original Factory Standard)
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
Product Name
|
TRIO MC405 Motion Controller
|
-
|
Original TRIO (Trio Motion Technology) Factory Product, High-Performance Multi-Axis Motion Controller
|
|
Model Number
|
MC405
|
-
|
Unique model code for TRIO motion controller series, consistent with factory calibration and quality control standards
|
|
Brand & Manufacturer
|
TRIO (Trio Motion Technology)
|
-
|
Complies with TRIO Strict Industrial Motion Controller Standards, Ensuring High Precision and Stable Operation
|
|
Product Certification
|
CE, UL, RoHS, FCC Certified
|
-
|
Meets International Industrial Safety, Electromagnetic Compatibility (EMC) and Environmental Protection Standards
|
|
Core Application
|
CNC Machining, Packaging Machinery, Printing Machinery, Robot Control, Linear Motion Control, Multi-Axis Synchronous Control
|
-
|
Suitable for Medium-High Precision Industrial Motion Control Scenarios, Compatible with TRIO I/O Modules and Drivers
|
|
Protection Grade
|
IP20
|
-
|
Protects Against Solid Objects ≥12.5mm, Suitable for Cabinet Installation, Indoor Industrial Environment Use Only
|
2. Electrical Specifications (Ta = 25℃, RH = 60%, Standard Working Conditions, Unless Otherwise Specified)
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Operating Voltage (DC)
|
18
|
24
|
30
|
VDC
|
Stable DC power supply, compatible with industrial standard 24VDC power modules, ripple ≤ 10%
|
|
No-Load Current
|
-
|
0.5
|
0.8
|
A
|
At rated operating voltage, no I/O modules or drivers connected
|
|
Rated Operating Current
|
-
|
1.2
|
1.8
|
A
|
At rated operating voltage, with standard configuration of I/O modules and 2-axis drivers
|
|
Power Consumption
|
-
|
28.8
|
43.2
|
W
|
Typical power consumption under normal operating conditions, excluding driver power supply
|
|
Input Impedance (Control Signal)
|
100
|
120
|
150
|
kΩ
|
For analog/digital control signal input, ensuring stable signal transmission and anti-interference
|
|
Output Current (Digital Output)
|
0.1
|
0.5
|
1.0
|
A
|
Per channel, DC output, suitable for driving relays and small solenoid valves
|
3. Motion Control Specifications
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
|
|
Controllable Axis Number
|
4
|
Axes
|
Supports 4-axis independent control, 2-axis/3-axis/4-axis interpolation, synchronous following control
|
|
|
|
Positioning Precision
|
-
|
±0.01
|
-
|
mm
|
Under standard working conditions, matching with 1000 line encoder, no load
|
|
Maximum Speed
|
-
|
5
|
10
|
m/s
|
Adjustable according to motor and mechanical configuration, stable operation without overshoot
|
|
Maximum Acceleration
|
-
|
10
|
20
|
m/s²
|
Smooth acceleration/deceleration, supports trapezoidal and S-curve acceleration modes
|
|
Encoder Input
|
50
|
1000
|
5000
|
Line
|
Supports incremental encoder (A/B/Z phase), differential input, anti-interference design
|
|
Control Modes
|
Position Control, Speed Control, Torque Control, Interpolation Control
|
-
|
-
|
-
|
Multiple control modes switchable online, suitable for different motion control scenarios
|
