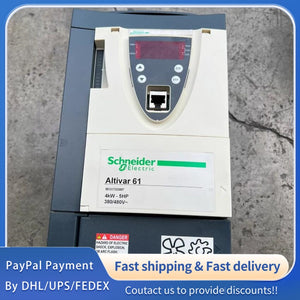

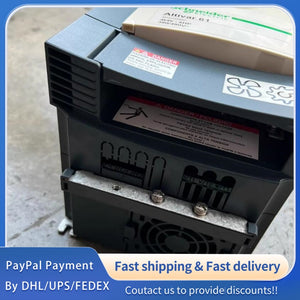

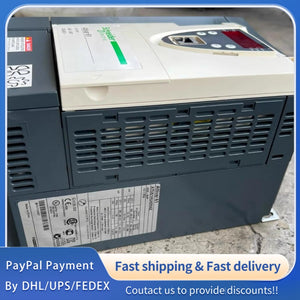

1 PCS USED Schneider Electric Altivar 61 ATV61HU40N4Z #LYQ007
1 PCS USED Schneider Electric Altivar 61 ATV61HU40N4Z #LYQ007
| Parameter | Value |
|---|---|
| Manufacturer | Schneider Electric |
| Product Line | Altivar 61 |
| Model | ATV61HU40N4Z |
| Product Type | Variable Speed Drive (VFD) |
| Application | Pumping and Ventilation Machines |
| Motor Power (kW) | 4 kW, 3-phase, 380…480 V |
| Motor Power (hp) | 5 hp, 3-phase, 380…480 V |
| Supply Voltage | 380…480 V (-15…+10%) |
| Supply Phases | 3-phase |
| Supply Frequency | 50…60 Hz (-5…+5%) |
| Supply Frequency Limits | 47.5…63 Hz |
| Line Current (380 V) | 14.1 A |
| Line Current (480 V) | 11.5 A |
| Apparent Power (380 V) | 9.3 kVA |
| EMC Filter | Level 3 EMC filter |
| Continuous Output Current (380 V, 12 kHz) | 10.5 A |
| Continuous Output Current (460 V, 12 kHz) | 7.6 A |
| Maximum Transient Current | 12.6 A for 60 s |
| Output Frequency | 0.1…599 Hz |
| Switching Frequency | 1…16 kHz adjustable; 12…16 kHz with derating |
| Nominal Switching Frequency | 12 kHz |
| Speed Range (Open-Loop) | 1:100 |
| Speed Accuracy | ±10% of nominal slip (0.2 Tn to Tn) |
| Transient Overtorque | 130% of nominal motor torque (±10%) for 60 s |
| Braking Torque | 30% without resistor; ≤125% with resistor |
| Control Modes | V/F (2/5 points), Sensorless Flux Vector, Quadratic U/F (Energy Saving) |
| Communication | Integrated Modbus (RS485) & CANopen; optional cards (Profibus, Ethernet/IP, etc.) |
| Analog Inputs | 2 (AI1: ±10 V differential; AI2: 0…10 V / 0…20 mA configurable) |
| Analog Outputs | 1 (0…10 V / 0…20 mA configurable) |
| Digital Inputs | 7 (LI1–LI6, PWR safety input) |
| Digital Outputs | 2 relays (R1: NO/NC; R2: NO) |
| Relay Switching Current | 5 A resistive / 2 A inductive (250 V AC / 30 V DC) |
| Internal Supply | 24 V DC (21…27 V), ≤200 mA; 10.5 V DC for potentiometer |
| Acceleration/Deceleration Ramps | Linear, adjustable 0.01…9000 s; S/U/customizable |
| Protection Functions | Overcurrent, overvoltage, undervoltage, overheating, phase loss, motor thermal protection, STO |
| Dimensions (W×H×D) | 155 × 260 × 187 mm |
| Weight | 4 kg (8.8 lb) |
| Degree of Protection | IP20 (upper part); IP54 (lower part) |
| Operating Temperature | -10…+50 °C (no derating); +50…+60 °C (with derating) |
| Storage Temperature | -25…+70 °C |
| Relative Humidity | 5…95% (non-condensing) |
| Operating Altitude | ≤1000 m (no derating); 1000…3000 m (1% derating per 100 m) |
| Certifications | CE, UL, CSA, C-Tick, DNV, GOST, NOM |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
